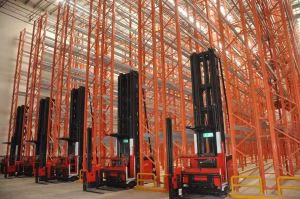

VNA High Density Narrow Aisle Pallet Racking
Narrow aisles with full pallet selectivity — ideal for high-bay warehouses using turret or guided trucks.
View Details
2004
Factory Founded
20+
Years of Rack Manufacturing
18+
Storage Product Lines
Free
3D/CAD Layout Design
Product Range
Warehouse Racking & Storage Products
From selective pallet racking to multi-tier mezzanines, every system is designed around your load, aisle width and forklift — and exported to buyers across Europe, Oceania, the Americas and the Middle East.
VNA

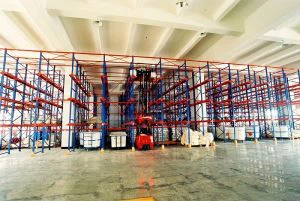

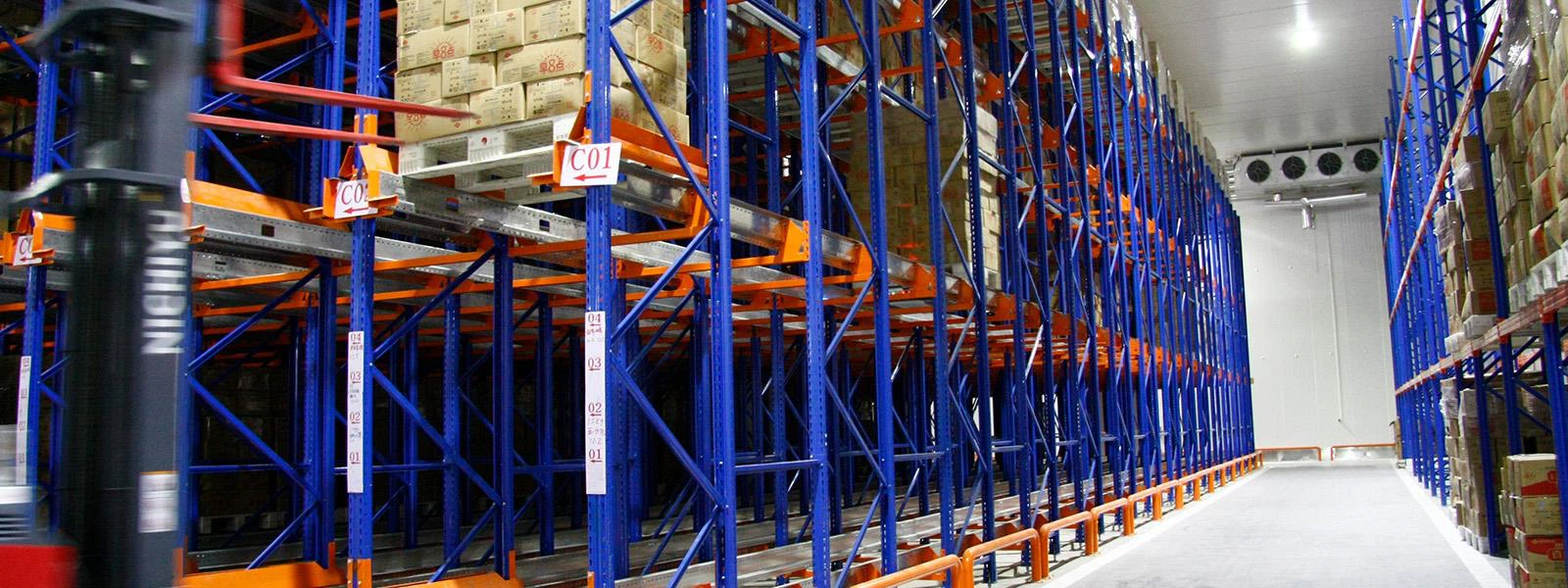

Cold Room Drive In Pallet Racking for Cold Rooms
Minimises aisles to cut refrigeration cost per pallet; drive-thru option enables FIFO rotation.
View Details

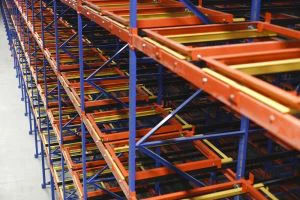

FILO FILO Push Back Pallet Rack System
Stores 2–5 pallets deep per lane on nested carts, giving dense storage with quicker access than drive-in.
View Details

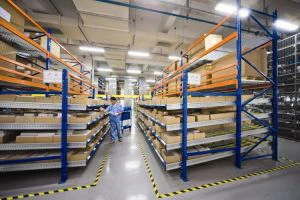

FIFO FIFO Carton Flow Rack System
Inclined roller lanes feed cartons to the pick face, speeding up e-commerce and DC order picking.
View Details

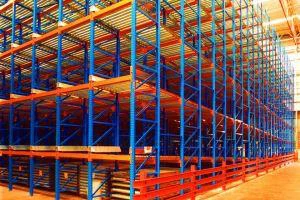

Gravity Gravity Feed Pallet Racking System
Pallets roll from loading to picking side with speed controllers — strict FIFO for food and pharma.
View Details

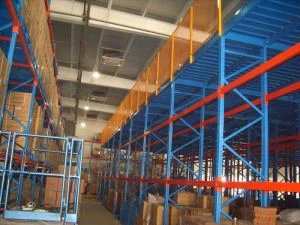

Multi-Tier Multi Layer Steel Mezzanine Platform
Free-standing structural platform with stairs, guardrails and decking options for offices or storage.
View Details

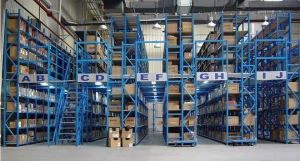

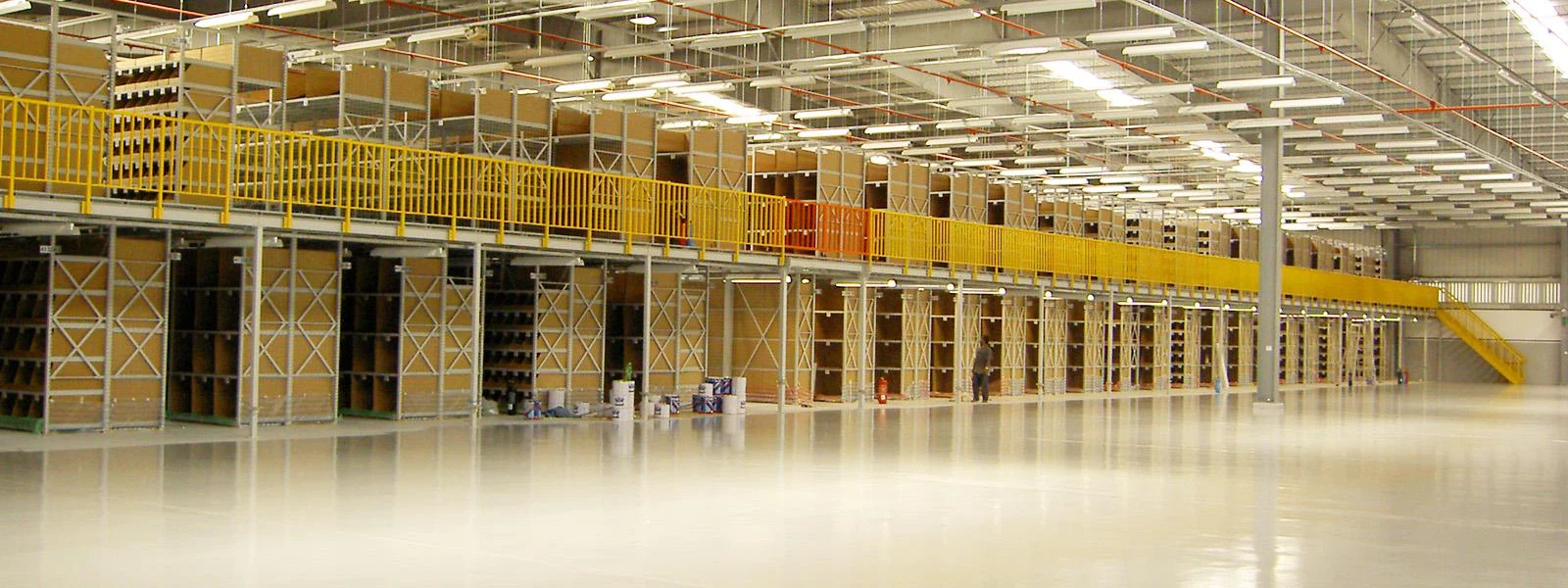

Rack-Supported Upright Supported Mezzanine Floor Rack
Shelving uprights carry the walkway floor, creating 2–3 picking levels at a lower steel cost.
View Details

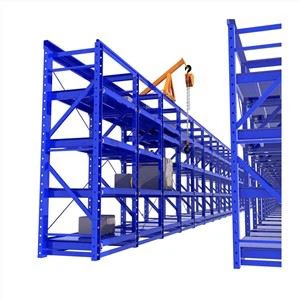

Mold Rack Heavy Duty Molders Racking Shelves
Roll-out drawer design lets cranes lift heavy dies and molds safely from above.
View Details

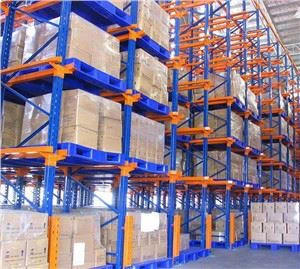

Bulk Storage Metal Drive In Pallet Rack
Deep-lane storage for large batches of the same SKU, with guide rails to protect uprights.
View Category

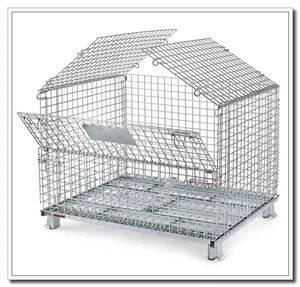

Foldable Wire Mesh Storage Cage
Stackable, collapsible cages that improve visibility and save return-freight space.
View Details

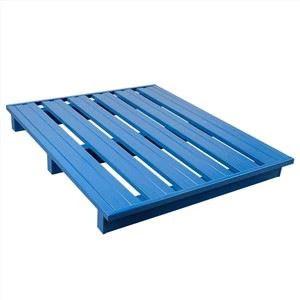

Steel Heavy Duty Steel Pallet
Fire-resistant, hygienic and long-life alternative to timber pallets for racking and export.
View Details

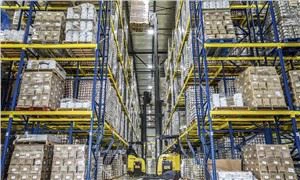

Selective Selective Pallet Racking Design
Direct access to every pallet, adjustable beam levels and the lowest cost per pallet position.
View Category

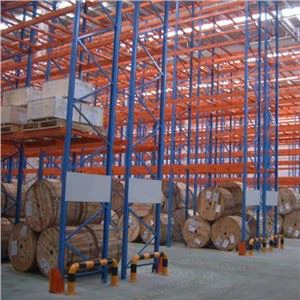

Heavy Duty Heavy Duty Beam Rack
Roll-formed box beams and punched uprights sized to your unit load and seismic zone.
View Category
Stackable Steel Pallet Box Cage
Rigid steel containers with forklift entry for parts storage, stacking and in-plant transport.
View Details

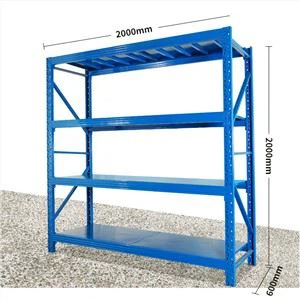

AS4084 Middle Weight Longspan Shelving
Boltless hand-loaded shelving for spare parts, cartons and retail back rooms.
View CategoryNeed a Custom System?
Browse the full catalog of 18+ product lines, or send us your layout for an engineered recommendation.
All Products
2004Manufacturing Since
About Us
A Racking Manufacturer With Two Decades of Project Experience

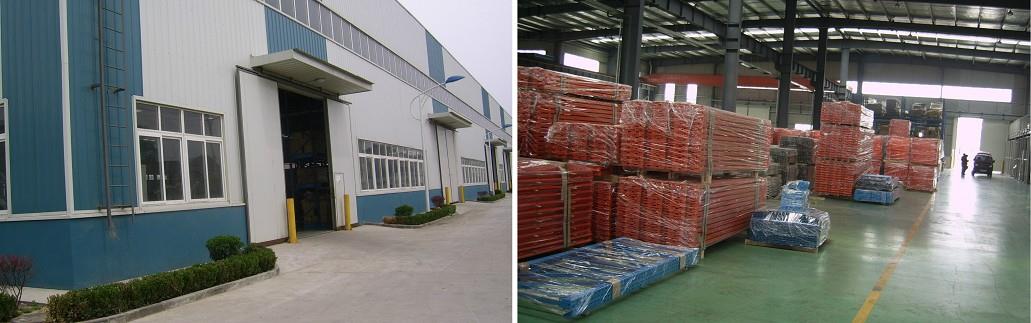

Random Racks Storage Equipment Co., Ltd. specializes in warehouse storage racks, logistics equipment and material handling solutions. Our factory was founded in 2004, and our own brand was registered in 2012. Today we operate as a large-scale racking manufacturer with in-house design, roll-forming, welding and powder-coating lines.
Because we control the full process — from steel coil to finished upright — overseas buyers get consistent quality, traceable materials and realistic lead times. Our engineers work from your floor plan, pallet dimensions and forklift data to deliver safe, code-conscious layouts.
- AS4084-compliant longspan shelving
- Third-party load test reports
- Structural steel with mill certificates
- Export packing for sea freight
20+ Years Production Experience
In-house manufacturing since 2004.
Third-Party Tested
Verified load capacity you can document.
Free 3D / CAD Drawings
Layouts and load calculations at no cost.
Professional OEM / ODM
Custom sizes, colors and private branding.
Free Samples Available
Inspect finish and gauge before ordering.
Buyer's Guide
How to Choose the Right Racking System
Storage density, inventory rotation and pallet selectivity pull in different directions. Use this engineer-prepared comparison to shortlist systems before requesting a layout.
| Racking System | Best For | Storage Density | Inventory Flow | Pallet Selectivity |
|---|---|---|---|---|
| Selective Pallet Racking | Mixed SKUs, frequent picking, general warehouses | Standard | Any (FIFO / LIFO) | 100% |
| Narrow Aisle (VNA) Racking | High-bay buildings with many SKUs | High | Any (FIFO / LIFO) | 100% |
| Drive-In / Drive-Thru Rack | Large batches of few SKUs, cold storage | Very High | LIFO (FIFO with drive-thru) | Low |
| Push Back Rack | 2–5 pallets per SKU, faster access than drive-in | High | LIFO | Medium |
| Gravity / Pallet Flow Rack | Perishables, date-coded goods, beverage | High | Strict FIFO | Medium |
| Radio Shuttle Rack | High throughput dense storage, deep lanes | Very High | FIFO or LIFO | Medium |
| Mobile Rack | Slow-moving goods where space is costly | Very High | Any | 100% (one aisle at a time) |
| Cantilever Rack | Long loads: pipe, timber, steel bars | Standard | Any | 100% |
| Automated Racking (AS/RS) | 24/7 operations, labor-saving, high bays | Very High | WMS controlled | 100% (automated) |
Final capacity depends on floor slab, clear height, sprinkler layout and local codes. Our engineers verify each design before production.
How We Work
From Floor Plan to Installed Racking
A transparent five-step workflow refined over hundreds of export projects.
Requirement Review
Share floor plan, clear height, pallet size, unit load and truck type.
Free 3D/CAD Layout
Engineers prepare layout, load calculations and a detailed bill of materials.
Production & QC
Roll-forming, welding and powder coating with dimensional and coating checks.
Export Packing
Protected bundles labeled by component, loaded to maximize container space.
Installation Support
Assembly drawings, video guidance and on-site supervision on request.
Industries
Storage Solutions by Industry
Each sector has its own load profile, hygiene and rotation rules. We design accordingly.
Cold Chain
E-commerce & 3PL
Automotive & Tires
Manufacturing
Retail & Wholesale
Agriculture & Food
FAQ
Questions Overseas Buyers Ask Us
Straight answers from our engineering and export team.
Can you design a racking system based on my warehouse drawing?
Yes. Send your floor plan, clear height, pallet size, unit load weight and forklift type. Our engineers return a free 3D/CAD layout with load calculations and a bill of materials before production starts.
Which design standards do your racks follow?
Our longspan shelving is designed to AS4084 requirements, and pallet racking structures can be engineered with reference to EN 15512, FEM and RMI design guidelines depending on your destination market. Third-party load test reports are available.
How do I choose between drive-in, push back and pallet flow racking?
Drive-in racking suits large volumes of few SKUs with LIFO rotation, push back racking suits 2 to 5 pallets deep per SKU with faster access, and pallet flow (gravity) racking is ideal when strict FIFO rotation is required, such as food and cold chain storage.
What is the typical production lead time?
Standard projects typically ship within 15 to 30 days after drawing approval. Large or automated projects are scheduled individually and confirmed in the project plan.
Do you offer OEM/ODM and installation support?
Yes. We provide OEM/ODM manufacturing with custom colors, sizes and branding, plus installation drawings, assembly guidance and on-site supervision for qualified projects.
Contact Now
Plan Your Next Warehouse With Our Engineers
Tell us about your space and goods. You will receive a practical layout recommendation from a team that has been building racking since 2004.
- CompanyRandom Racks Storage Equipment Co., Ltd.
- AddressGuli Industry Zone, Jiangning District, Nanjing, Jiangsu, China
- E-mail[email protected]
What to Include in Your Project Brief
These details let our engineers size beams and uprights accurately on the first draft.
- 1Warehouse length, width and clear height (CAD or sketch)
- 2Pallet or carton dimensions and maximum weight per unit
- 3Forklift type, lift height and required aisle width
- 4Number of SKUs and preferred FIFO or LIFO rotation
- 5Destination country and applicable seismic or safety codes
