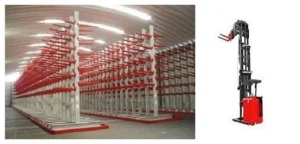

Cantilever Racking Systems engineered by Random Racks Storage Equipment Co., Ltd. offer superior structural efficiency for handling long, heavy, and awkward loads. Built from certified high-strength steel (Q235B & Q355B) and tested to meet international standards (including AS4084 and FEM guidelines), our heavy-duty single and double-sided cantilever racks maximize linear storage space without front column obstructions.
Designed for Pipes, Tubing, Timber & Steel Profiles
From building material yards to heavy machinery manufacturing, our cantilever structures deliver high load capacity and flexible vertical storage customization.
Unobstructed Front Access
Eliminating front vertical columns allows instant handling of varying material lengths by forklift or overhead crane.
High Load Arm Capacities
Structural I-beam arms and cold-rolled arms engineered to hold from 300 kg up to 1,500+ kg per arm level safely.
Custom Coating & Finishes
Available in durable electrostatic powder coating for indoors or hot-dip galvanizing for corrosive outdoor environments.
Heavy Duty Cantilever Racking Series
Pipe Storage Hanging Rack
Specialized vertical and horizontal hanging arm cantilever system tailored for plastic and steel pipe bundles.

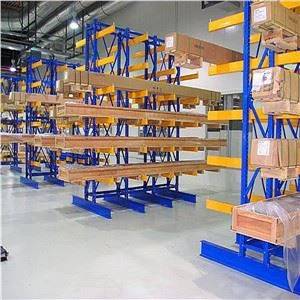

Cantilever Racking for Tube
Heavy-duty column structures equipped with arm end-stops to securely hold metal tubes and round bars without roll-off.

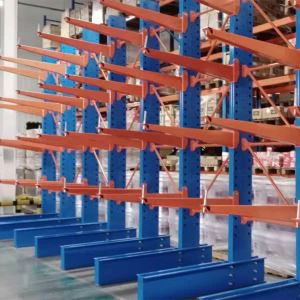

Rotatable Cantilever Rack
Flexible arm configuration allowing rotation and swing access for narrow aisle forklift operation and specialized cranes.

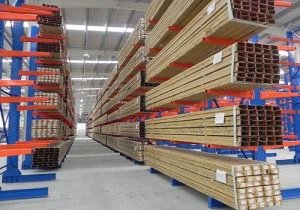

Double Arm Cantilever Rack
Symmetrical double-sided columns multiplying storage density on both faces, optimal for center-aisle warehouse layouts.

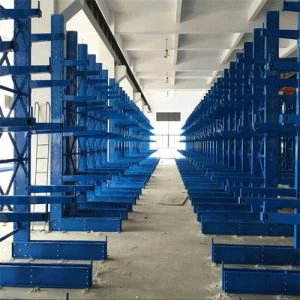

Pipe Cantilever Racking
Modular racking system featuring steel decking and mesh panels between cantilever arms for mixed loose parts and pipe storage.
Heavy Duty Arm Cantilever Rack
Heavy structural steel design suitable for storing lumber bundles, heavy aluminum extrusions, and sheet metal plates.
Adjustable Cantilever Rack
Features 100mm / 140mm pitch adjustment pin locking mechanisms enabling rapid repositioning of arm levels.
Industrial Warehouse Cantilever System
Fully compliant with AS4084 regulations, backed by mill test reports, third-party structural testing, and safety locking pins.
Cantilever Racking Technical Specifications
| Structural Parameter | Standard Specification | Custom / OEM Options |
|---|---|---|
| Column Height | 2,000 mm – 6,000 mm | Up to 12,000 mm (High-Bay Storage) |
| Arm Length | 500 mm – 1,500 mm | Custom lengths with welded end-stops |
| Load Capacity | 300 kg – 1,000 kg / Arm | 1,500+ kg / Arm (Heavy Structural H-Beam) |

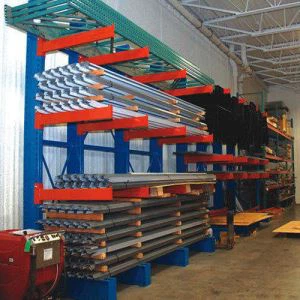

| Raw Material | High Grade Q235B / Q355B Steel | Specific grade certified upon request |
| Surface Finish | Powder Coated (RAL 5015 / RAL 2004) | Hot-Dip Galvanized for outdoor exposure |
| Design Standards | AS4084-2012, FEM 10.2.09, CE Certified | Seismic calculation reports available |
Factory-Direct Quality Assurance & Free 3D CAD Design
Since 2004, Random Racks Storage Equipment Co., Ltd. has delivered customized warehouse cantilever rack solutions to distributors, logistics centers, and manufacturing plants across North America, Europe, Australia, and the Middle East. Every project begins with a free 3D CAD layout, structural load verification, and complete bill of materials to eliminate assembly bottlenecks.
Request Your Free 3D CAD Layout & Factory Quote
Send us your floor plan, clear ceiling height, unit load weights, and material dimensions. Our structural engineers will return a complete design proposal within 24 hours.
