Radio Shuttle Racking Systems
Engineered by Random Racks Storage Equipment Co., Ltd., our high-density radio shuttle racking systems boost warehouse cube utilization up to 85%. Designed and manufactured under strict AS4084-2012, EN 15512, and FEM 10.2.02 structural standards, our semi-automated pallet shuttles deliver maximum throughput in ambient, cold-chain, and high-bay distribution centers worldwide.
Heavy-Duty Shuttle Racking Systems
Automatic Storage Radio Shuttle Racking
Semi-automated pallet runner system controlled via wireless RF remote. Eliminates forklift drive-in hazards while accelerating pallet placement.

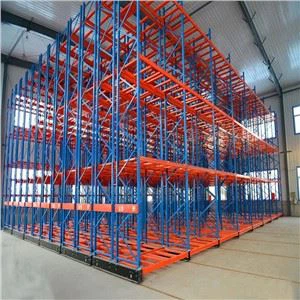

Cold Storage Radio Shuttle Rack
Engineered for extreme environments down to -30°C. Features low-temperature lithium power units and condensation-resistant electronics for cold chains.
Automated Pallet Shuttle System
Deep-lane high-density racking compatible with both LIFO and FIFO inventory rotation. Ideal for fast-moving consumer goods and beverage logistics.
Chemical Warehouse Shuttle Rack
Heavy-gauge structural steel framework coated with anti-corrosive powder finishes to safely store heavy bulk chemical raw materials.

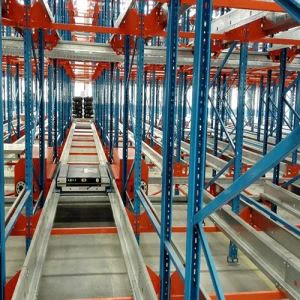

Economic Radio Shuttle Rack
Cost-effective dense storage alternative to conventional drive-in racks, engineered for medium-to-large batch inventory control.
Electric Mobile Shuttle Racking
Combines motorized mobile bases with radio shuttle carts to deliver ultimate space efficiency and 100% selective aisle access.
How Radio Shuttle Racking Transforms Warehouse Operations
A Radio Shuttle Racking System consists of high-density steel racking lanes, specialized guide rails, and self-powered shuttle cars. Standard forklifts do not enter the storage tunnels; instead, the forklift driver places the electric shuttle cart at the entry of the selected channel, and the shuttle independently lifts, moves, and deposits pallets deep within the lane.
By removing forklift operations from inside the rack structure, overall cycle times are reduced by up to 50%, rack collision damage is virtually eliminated, and operational safety is significantly upgraded for facility personnel.
Key Advantages for International B2B Buyers
Up to 85% Volume Utilization
Eliminates multiple forklift operating aisles, allowing deep-lane pallet positioning up to 40+ pallets deep per channel.
Dual FIFO & LIFO Operations
Easily switch between First-In First-Out (FIFO) and First-In Last-Out (LIFO) software logic based on product expiration requirements.
Enhanced Structural Safety
Forklifts stay in main transport aisles. No collisions with upright columns, dramatically lowering structural repair costs.
Sub-Zero Cold Chain Optimized
Equipped with thermal-regulated lithium batteries and IP65 moisture sealing, ideal for food freezing facilities (-30°C).
Standard Technical Parameters
| Rated Load Capacity | 500 kg to 1,500 kg per pallet position |
|---|---|
| Running Speed | Unloaded: 1.0 - 1.2 m/s | Fully Loaded: 0.7 - 0.9 m/s |
| Battery Specifications | 24V / 48V Lithium Iron Phosphate (LiFePO4) with fast-charging dock |
| Operating Battery Life | 8 - 10 hours continuous operation per charge cycle |
| Operating Temperature Range | Ambient / Cold Storage: -30°C to +45°C |
| Structural Compliance | AS4084-2012, EN 15512, RMI, FEM 10.2.02, ISO 9001 |
| Steel Coil Grade | High-tensile Q235B / Q355B cold-rolled structural steel with mill test certificates |
| Surface Treatment | Epoxy powder coating (70-90 microns) or Hot-Dip Galvanized for humid environments |
Direct Factory Supply & OEM/ODM Solutions
Founded in 2004, Random Racks Storage Equipment Co., Ltd. brings two decades of specialized racking manufacturing expertise to international engineering firms, logistics integrators, and warehouse managers. Operating advanced continuous roll-forming lines, automated robotic welding stations, and an environmentally compliant powder coating facility in Nanjing, China, we guarantee consistent dimensional precision and batch-to-batch structural integrity.
Every radio shuttle racking system is fully customized based on your facility's clear height, floor slab load rating, pallet dimensions (Euro, GMA, ISO, or custom sizes), and forklift specifications. Our engineering department provides comprehensive CAD drawings, structural calculations, and 3D layout simulations before production approval.
Radio Shuttle Racking Knowledge Center
How does a radio shuttle racking system operate?
A radio shuttle racking system uses an independent battery-powered cart that travels on rails within storage channels. Standard forklifts place the shuttle at the desired level and channel, while workers control pallet lifting, movement, and retrieval remotely via RF controller or tablet interface.
Can radio shuttle racks operate in cold storage and freezing conditions?
Yes. Random Racks Storage Equipment Co., Ltd. manufactures specialized cold-chain radio shuttle systems engineered with low-temperature lithium iron phosphate batteries, anti-condensation enclosures, and cold-resistant steel structures capable of operating reliably in freezer environments down to -30°C.
Does radio shuttle racking support both FIFO and LIFO inventory models?
Yes. Shuttle racking systems can be configured for First-In, Last-Out (LIFO) when accessed from a single aisle, or First-In, First-Out (FIFO) when configured with separate loading and retrieval aisles.
What international quality standards do Random Racks shuttle systems comply with?
Our racking design and manufacturing adhere to global structural guidelines including AS4084-2012 (Australian standard), EN 15512 (European standard), FEM 10.2.02, and ISO 9001 quality standards. Third-party mill certificates and structural load test reports are supplied upon request.
Request a Custom Layout & Factory Quote
Send us your warehouse dimensions, pallet specifications, and load requirements. Our structural engineering team will deliver a free 3D CAD design and bill of materials within 24 hours.
