High-Density Storage Engineering
Industrial Pallet Racking Manufacturer & Global Supplier

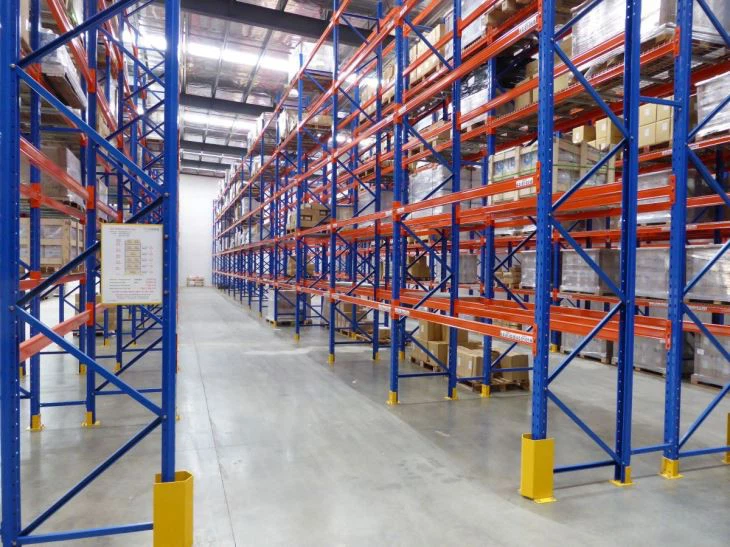

Random Racks Storage Equipment Co., Ltd. offers direct-access selective pallet racking systems engineered to optimize warehouse throughput and structural safety. Standardized to AS4084, FEM, and RMI design specifications, our heavy-duty beam racks provide 100% selectivity for fast-moving inventory while maintaining maximum load stability under dynamic warehouse operations.
Whether you require standard selective beam racks, teardrop pallet racking for North American markets, or high-bay VNA systems, our engineering team custom-sizes beam profiles, column gauges, and upright frame depths to suit your pallet specifications and forklift lifting capabilities.
Product Catalog
Standard & Custom Pallet Rack Solutions
Explore our heavy-duty pallet rack configurations designed for logistics hubs, cold storage facilities, and industrial plants.
Heavy Duty Beam Rack
Teardrop US RMI Pallet Rack

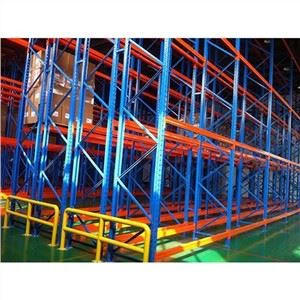

Double Deep Pallet Rack

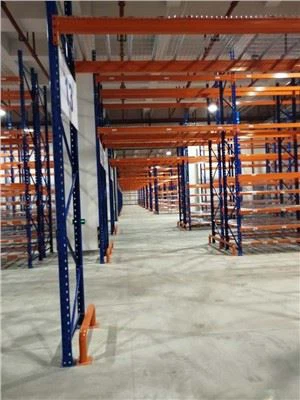

Warehouse Storage Rack Solution

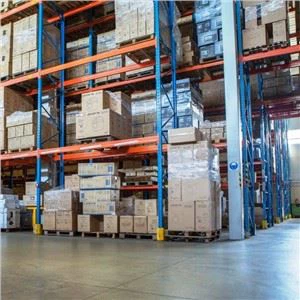

Heavy Weight Pallet Rack

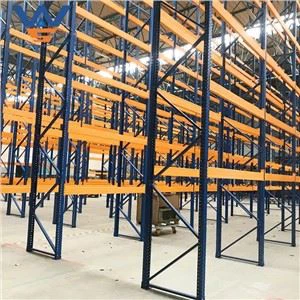

Teardrop Pallet Rack Shelving

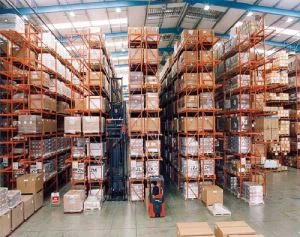

Very Narrow Aisle (VNA) Pallet Rack
Engineering Components
Pallet Racking Structural Details
Precision-engineered cold-rolled steel profiles for load reliability and safe handling.
Heavy-Duty Step Beams & Box Beams
Manufactured by seam-welding two C-sections to create a rigid box profile with reinforced top and bottom edges. Beam end connectors feature heavy-duty safety pins that automatically lock into place to prevent accidental displacement from forklift impacts.
High-Tensile Upright Frames
Assembled using cold-formed upright profiles connected by diagonal and horizontal bracing with self-locking nuts. Uprights feature double-row diamond punching with 75mm or 50mm pitch increments for height adjustments.
Technical Specifications
Performance & Design Capabilities
Durable & Heavy-Duty Construction
Engineered with Q235B cold-rolled structural steel to support heavy loads ranging from 800 kg to 5,000 kg per beam level across multi-tier storage setups.
Complete Customization Options
Fully tailored frame heights up to 11,800 mm, beam spans from 2,000 mm to 3,500 mm, and variable frame depths to fit standard ISO, Euro, or custom pallets.
Corrosion-Resistant Powder Coating
Electrostatic powder coating finish provides protection against wear, humidity, and abrasion, available in custom RAL colors (Standard: RAL 5015 Blue, RAL 2004 Orange).
Free CAD / 3D Layout Engineering
Our engineering office provides free structural calculations, 3D CAD layouts, and bill of materials tailored to floor slab loading limits and forklift turning radii.
Quality & Compliance
Why Cooperate With Random Racks
Structural integrity and personnel safety form the basis of our manufacturing standard.
Certified Raw Steel Properties
We source prime Q235 steel coils accompanied by mill test certificates to guarantee predictable structural performance under rated load capacity:
- Yield Strength: Nominally 235 MPa
- Tensile Strength: 370 - 500 MPa
- Elongation: Approx 26% (200mm gauge length)
Safety Accessories & Upgrades
- Heavy-Duty Footplates: Anchored to concrete floor slabs via chemical or expansion bolts.
- Column Protectors & Guardrails: U-shaped steel barriers anchored independently to prevent truck collisions.
- Pallet Support Bars & Mesh Decking: Increase load support and eliminate fire hazards associated with timber decks.
- Safety Locking Bolts: Prevent beam dislodgement under violent upward forces.
- Row Spacers & Shims: Maintain row alignment, dampen vibrations, and adjust layout levelness.
