Engineering Grade Storage & Handling Systems
Explore our export-ready, structural steel material handling solutions designed according to rigorous European (EN 15512), Australian (AS4084), and American (RMI) engineering codes.
Pallet / Drive-in / Cantilever / Gravity / Push-back / Mobile Rack Mezzanine / Fluent / Sliding Rotary Rack Shelf

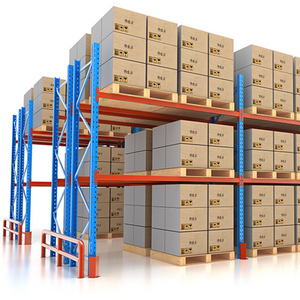

Selective Heavy Duty Warehouse Storage Rack Shelving System Pallet Racking
Cream White Metal Supermarket Shelf Adjustable Layer Retail Grocery Store Back Panel Display Shelving Rack
Work with Forklift Vertical Storage Space-saving Factory Racking Warehouse Storage Racking Heavy Duty Racking Stable Customized

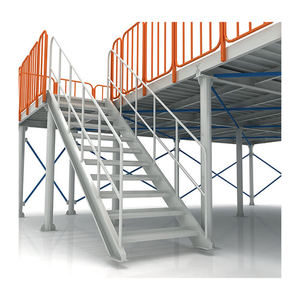

Steel Mezzanine Floor Racking System Custom Industrial Warehouse Platform with Staircase 500kg Load Capacity
Pharmacy Miniload Asrs Electronic Miniload Automated Warehouse System Shelving Rack
Yilian 3-Layer Foldable Steel Stillage Storage Turnover Box Stackable Welded Steel Transport Metal Wire Mesh Pallet Cage
Mezzanin Rack Floor Second Floor Platform Warehouse Flooring
Structural Safety & Engineering Paradigms in Modern Material Handling
An authoritative analysis of high-density warehouse storage systems, CE certification mandates, structural load calculations, and global supply chain integration.
The Structural Economics of High-Density Storage (2025–2030)
As industrial real estate costs across North America, Europe, and Asia-Pacific continue to climb, logistics executives must shift focus from horizontal footprint expansion to maximum vertical cube utilization. Modern warehouse engineering demands structural steel solutions that guarantee safety under extreme loading conditions while optimizing throughput velocities.
Selecting CE-certified material handling equipment ensures that storage systems meet strict European structural safety standards under EN 15512:2020. This standard governs cold-formed steel rack design, evaluating yield stress dynamics, beam deflection ratios ($L/200$ to $L/300$), dynamic forklift impact allowances, and seismic frame stability.
Material Integrity & Structural Load Verification
Engineering compliance requires verified raw material integrity. High-tensile structural steel profiles (Q235B, Q355B, or equivalent S355 steel grade) undergo rigorous cold roll-forming to achieve ideal stiffness-to-weight ratios. The structural longevity of warehouse racking depends on precise profile geometries, high-frequency continuous welding, and automated electrostatic powder coating.
Third-party finite element analysis (FEA) and physical stub-column testing validate upright capacity, connector lock resilience, and frame torsional rigidity. This engineering transparency protects warehouse operators from catastrophic rack collapses, mitigating liability and ensuring uninterrupted supply chain velocity.
Random Racks Storage Equipment Co., Ltd.
Integrated OEM/ODM Design, Structural Engineering, and Advanced Manufacturing Capabilities
20+ Years Manufacturing Heritage
Founded in 2004 in the Guli Industry Zone, Jiangning District, Nanjing, China, Random Racks Storage Equipment Co., Ltd. has expanded into a global powerhouse for warehouse logistics systems. Our brand identity stands for structural resilience, material traceability, and continuous engineering innovation.
Bespoke 3D/CAD Engineering
Every industrial warehouse facility possesses unique clear heights, slab load tolerances, pick face requirements, and material handling pathways. Our engineering team provides complimentary 3D/CAD structural modeling, Finite Element Analysis (FEA), and detailed Bill of Materials (BOM) before production.
Global CE Certification Matrix
We serve systemic enterprise distributors and end-users across Europe, Oceania, North America, the Middle East, and Latin America. All exported structural components feature certified raw mill test certificates, CE safety compliance, AS4084 certification, and ISO 9001/14001 operational quality standards.
Industrial Racking System Comparison Matrix
Technical performance metrics compiled by certified material handling structural engineers.
| Racking Architecture | Primary Storage Application | Cube Space Utilization | Stock Inventory Rotation | Pallet Selectivity | Structural Load Rating |
|---|---|---|---|---|---|
| Selective Pallet Racking | General logistics, FMCG, mixed SKU distribution | 35% - 45% | FIFO or LIFO | 100% Immediate Access | 1,000 kg - 4,500 kg / Beam Level |
| Very Narrow Aisle (VNA) | High-bay warehouses, space-constrained DCs | 65% - 75% | FIFO or LIFO | 100% (Specialized Truck) | 1,000 kg - 3,500 kg / Level |
| Drive-In / Drive-Thru | Cold storage, bulk chemical, low SKU count | 75% - 85% | LIFO (Drive-Thru = FIFO) | Low (Batch Level) | 500 kg - 1,500 kg / Pallet Position |
| Push-Back Racking | 2 to 6 pallets deep per lane, medium throughput | 60% - 70% | LIFO (Nested Cart Flow) | Medium (Per Lane) | 1,000 kg - 1,800 kg / Pallet Position |
| Pallet Gravity Flow | Perishable food, pharmaceuticals, fast rotation | 70% - 80% | Strict FIFO (Roller Bed) | Medium (Face Level) | 500 kg - 1,500 kg / Pallet Position |
| Radio Shuttle Automation | Automated cold chains, mega distribution hubs | 80% - 90% | Software Configurable | Controlled via Shuttle | 500 kg - 2,000 kg / Pallet Position |
| Steel Mezzanine Floors | Overhead footprint expansion, multi-tier picking | 100% Overhead Floor Addition | Manual / Conveyor / Lift | Fully Customizable | 300 kg - 1,500 kg / Sq. Meter |
| Pharmacy Mini-Load ASRS | High-speed automated small-parts sorting | 85% - 95% Vertical Heights | WMS Automated FIFO | 100% Automated Pick | 30 kg - 300 kg / Tote Bin |
Deep-Dive Engineering Analysis of Core Racking Systems
Understanding structural behavior and load dynamics across specialized warehouse storage configurations.
Heavy-Duty Selective & VNA Racking Systems
Selective pallet racking remains the backbone of global material handling due to its 100% pallet selectivity. Constructed from cold-formed upright frames featuring teardrop, diamond, or trapezoidal keyholes, these racks allow step beam adjustment in 50mm to 75mm increments.
When integrated into Very Narrow Aisle (VNA) setups, aisle widths shrink from 3.5 meters down to 1.6 meters, boosting cubic floor storage density by over 40%. Bottom guide rails (mechanical wire-guided or structural steel angle rails) ensure high-reach turret trucks navigate aisles safely at high speeds.
High-Density Push-Back & Drive-In Solutions
In high-density environments like cold storage, reducing operational energy costs requires packing more goods per cubic meter. Drive-In racking eliminates dedicated forklift aisles, allowing lift trucks to drive directly into storage bays to drop off or retrieve bulk goods.
Push-Back racking utilizes nested dynamic carts riding on inclined structural steel rails. When a forklift loads a new pallet, it gently pushes the preceding pallet back. Upon retrieval, gravity brings the next pallet forward to the pick face, delivering LIFO speed without requiring forklifts to enter the rack structure.
Structural Steel Mezzanines & Multi-Tier Platforms
Instead of incurring the real estate capital expenditure of purchasing new land, industrial steel mezzanines double or triple usable square footage within existing building envelopes. Built from heavy-duty I-beams, C-channel purlins, and heavy upright columns, these free-standing structures support heavy equipment, offices, or picking modules.
Flooring choices include cold-rolled steel plate, perforated mesh, anti-slip checkered plate, or heavy-duty structural plywood. Safety features like staircases, kickplates, sliding pallet gate modules, and handrails conform strictly to OSHA and European EN ISO 14122 safety standards.
Automated Storage & Retrieval Systems (ASRS Mini-Load)
Industry 4.0 warehouse design relies heavily on automated Mini-Load and Unit-Load ASRS configurations. Designed specifically for high-speed tote, carton, or small pharmacy container handling, Mini-Load systems utilize automated stacker cranes operating in ultra-narrow aisles.
Manufactured with millimeter precision tolerances, our racking frames support integrated guide rails, busbar power conduits, and laser positioning targets. By connecting directly with Enterprise Resource Planning (ERP) and Warehouse Management Systems (WMS), these solutions deliver 24/7 automated picking with zero manual error rates.
Emerging Trends shaping Material Handling Procurement
Key technological, environmental, and structural shifts driving global supply chain infrastructure investments.
Green Steel & Low-Carbon Surface Powder Treatments
Global ESG (Environmental, Social, and Governance) requirements are transforming industrial manufacturing. Enterprise buyers prioritize racking systems manufactured using low-emissions electric arc furnace (EAF) steel alongside non-toxic, lead-free electrostatic powder coatings with zero VOC emissions.
IoT-Enabled Structural Health & Load Sensor Monitoring
Next-generation heavy-duty pallet racks now incorporate embedded wireless strain sensors and IoT impact monitors. These sensors detect unintended forklift impacts, track real-time deflection stress, and send preventative maintenance alerts before structural fatigue causes frame instability.
AMR & Autonomous Mobile Robot Collaborative Frameworks
Conventional forklift-only layouts are rapidly giving way to hybrid environments designed for Autonomous Mobile Robots (AMRs) and Automated Guided Vehicles (AGVs). Uprights, baseplates, and rack openings require modified clearances and specialized bottom-beam entry points for seamless robotic integration.
5-Step Precision Engineering & Procurement Workflow
From architectural blueprints to final on-site installation, our structured delivery method guarantees project execution without delay.
Requirement Audit
Submission of floor plans, clear building height, pallet dimensions, unit weight, and truck aisle limits.
3D CAD & FEA Design
Engineers produce complimentary 3D/CAD floor layouts, load capacity calculations, and structural safety documentation.
Roll-Forming & QC
High-precision automated cold roll-forming, robotic welding, and automated powder coating with ISO quality checks.
Export Packaging
Bundle wrapping, component labeling, steel strapping, and optimized container loading for safe ocean freight.
Assembly Guidance
Detailed step-by-step assembly drawings, video walkthroughs, and optional on-site installation supervision.
Frequently Asked Technical & Sourcing Questions
Clear, definitive answers to help supply chain managers, engineers, and buyers make informed decisions.
Can you engineer and manufacture racking systems according to our exact warehouse blueprints?
Yes. Our engineering department specializes in bespoke structural layout design. Simply send us your architectural CAD floor plan, structural clear height, slab load specifications, pallet dimensions (Length × Width × Height), maximum unit payload weight, and forklift truck specifications (minimum operating aisle width and maximum fork height).
Our team will prepare a complimentary detailed 2D/3D CAD layout, Finite Element Analysis load calculation, and an itemized Bill of Materials (BOM) prior to manufacturing approval.
What design standards and safety certifications apply to your material handling products?
Our structural design team builds racking systems adhering strictly to international building codes depending on your destination market:
- European Union: EN 15512:2020 (Steel static storage systems), EN 15620, and CE Machinery Directive compliance.
- Australia / New Zealand: AS4084-2023 (Steel Storage Racking Standards).
- North America: RMI (Rack Manufacturers Institute) and ANSI MH16.1 specifications.
Full raw material mill test certificates (MTC) and independent third-party physical load test reports are provided with every order.
How do I choose between Drive-In, Push-Back, and Gravity Pallet Flow Racking?
Selection depends directly on your SKU count, required throughput speed, and inventory rotation rules:
Drive-In Racking: Ideal for high-density bulk storage of few SKUs with Last-In, First-Out (LIFO) inventory rotation. Maximizes cube utilization in cold storage environments.
Push-Back Racking: Excellent for 2 to 6 pallets deep per lane with faster pallet selectivity than drive-in. Operates on a LIFO basis using nested carts without requiring forklifts to enter the rack structure.
Gravity Flow Racking: Built for strict First-In, First-Out (FIFO) rotation. Inclined roller beds carry pallets from the loading aisle to the picking face, making it ideal for perishable foods and fast-moving consumer goods.
What are the typical manufacturing lead times and export packaging standards?
Standard manufacturing lead times range from 15 to 30 days following drawing approval and deposit receipt. For complex automated ASRS projects or large multi-tier steel mezzanine platforms, production schedules are confirmed per project milestones.
All items are exported using ocean-ready protective bundling. Beams and upright frames are wrapped in protective plastic film, steel-strapped onto custom timber/steel runners, and corner-protected to prevent transit damage during sea freight container transport.
Do you offer custom surface treatments, private label OEM, and installation support?
Yes. We provide full OEM/ODM manufacturing capabilities. You can select custom RAL colors for beams and frames, request custom gauge steel thicknesses, or incorporate private logo branding on frame protectors and beam labels.
For installation, we supply complete step-by-step assembly blueprints and video documentation. For large-scale projects, certified installation engineers can be deployed on-site to direct local assembly crews.
Ready to Optimize Your Warehouse Spatial Density?
Speak directly with our senior material handling engineering team. Submit your building parameters today to receive a comprehensive 3D CAD layout, structural load calculation, and factory-direct price quotation within 24 hours.
Project Specification Checklist
To expedite your engineering quote, please have the following details ready when connecting with our chat team:
- Building length, width, and clear usable height
- Pallet dimensions ($L \times W \times H$) including cargo overhang
- Maximum load weight per pallet or shelf level
- Forklift make/model, maximum lift height, and turning radius
- Required operating temperature (Ambient vs Cold Room)
