Why Partnering with China's Premier Teardrop Rack Factory Matters
Combining 20+ years of heavy manufacturing heritage with rigorous international compliance for global distribution hubs and 3PL networks.
When selecting a China teardrop pallet rack factory, global supply chain executives and system integrators must evaluate material traceability, structural engineering standards, and automated manufacturing precision. Operating out of Nanjing, Jiangsu Province, Random Racks Storage Equipment Co., Ltd. has established itself as an authoritative manufacturer of heavy-duty industrial racking systems since 2004 (with brand registration finalized in 2012).
Our production plant integrates continuous cold-roll forming lines, robotic welding cells, fully automated electrostatic powder coating tunnels, and rigorous third-party physical load testing protocols. By maintaining full vertical control over steel coil slitting, frame punching, beam end-clip welding, and surface treatment, we deliver industrial racking systems engineered precisely to RMI (Rack Manufacturers Institute) ANSI MH16.1, AS4084 (Australian Standard), EN 15512, and FEM 10.2.02 structural guidelines.
Teardrop Pallet Racking: Engineering Specifications & Load Dynamics
A granular analysis of teardrop punching geometry, beam end-clip engagement, deflection parameters, and seismic frame design.
Universal Teardrop Hole Pitch
The standard North American teardrop pattern utilizes a 2-inch (50.8mm) vertical adjustment increment. Punching tolerances are held strictly within ±0.1mm using CNC punch presses to guarantee smooth pin drop and secure mechanical locking.
- Interchangeable with major OEM teardrop designs
- Toolless beam adjustment for rapidly evolving SKU profiles
- Cold-formed teardrop geometry prevents stress concentration
Cold-Rolled Beam Profiles
Manufactured from high-tensile Q235B or Q355B structural steel coils. Step beams feature a 1-5/8" step height for wire decking, steel panels, or pallet support bars, offering high resistance to lateral torsion.
- Step Beam heights: 3.0" up to 6.0" (custom depths)
- Continuous automatic seam-welded step design
- Deflection limit strictly capped at L/240 under maximum allowable working load
Gravity Safety Lock Pin
Every beam-to-frame connection point is fitted with a spring-loaded or gravity safety lock. This automatic retention mechanism prevents accidental beam dislodgement caused by upward forklift mast impacts.
- Exceeds RMI shear resistance requirements
- High-visibility zinc plated or bright orange finish
- Integral 3-stud or 4-stud end-clip engagement
Technical Comparison Matrix: Industrial Storage Rack Profiles
Selecting the optimal structural geometry requires evaluating load capacity, aisle width constraints, handling speed, and capital investment. Below is a comprehensive engineering comparison for logistics procurement managers.
| Racking System | Typical Load Range (per level) | Selectivity Ratio | Floor Space Utilization | Primary Industrial Application |
|---|---|---|---|---|
| Selective Teardrop Pallet Rack | 1,000 kg – 4,500 kg (2,200 – 10,000 lbs) | 100% Direct Access | 40% - 50% | General Warehousing, 3PL, FMCG, Retail Fulfillment |
| Very Narrow Aisle (VNA) Teardrop | 1,500 kg – 3,500 kg | 100% Direct Access | 65% - 75% | High-Bay Vertical Distribution, E-commerce Hubs |
| Drive-In / Drive-Thru Racking | 1,000 kg – 2,000 kg | Low (LIFO / FIFO options) | 75% - 85% | Cold Storage, Frozen Food, Homogeneous Bulk Goods |
| FILO Push-Back Cart System | 1,000 kg – 2,500 kg per cart | Medium (2–6 Pallets Deep) | 70% - 80% | Buffer Storage, Staging Zones, Medium SKU Count |
| FIFO Gravity Flow Racking | 800 kg – 1,800 kg per lane | High FIFO Rotation | 80% - 90% | Perishables, Pharmaceuticals, High-Throughput Goods |

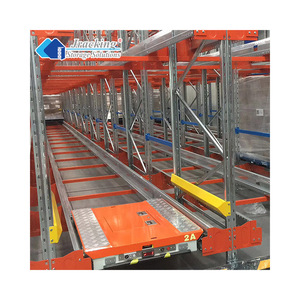

| Radio Shuttle Automation Racking | 1,500 kg – 2,000 kg per shuttle | Programmable FIFO/LIFO | 85% - 92% | Automated Logistics Centers, Food & Beverage Plants |
Future Procurement Trends in Industrial Storage Racking
How automation, high-yield steel alloys, and sustainable manufacturing are redefining warehouse infrastructure sourcing from China.
1. Convergence of Teardrop Geometry with Autonomous Mobile Robots (AMRs)
As global distribution centers transition toward robotics, teardrop racking structures are being manufactured with stricter dimensional tolerances. Future racking procurement focuses on micro-tolerance column straightness (within 1/1000 deviation) to support vertical AGV picking, automated guided forklifts, and radio shuttle carriers without laser sensor obstruction.
2. High-Strength Low-Alloy (HSLA) Steel Utilization
Leading China factories are replacing standard commercial grade carbon steels with advanced Q355B and Q460 cold-rolled alloys. HSLA steel allows manufacturers to reduce structural wall thickness while maintaining equivalent or superior frame moment capacities—substantially lowering shipping weight and ocean freight expenses for overseas buyers without compromising safety factors.
3. Zero-VOC Thermosetting Powder Coatings
Environmental standards in Chinese manufacturing regions now mandate state-of-the-art non-toxic polyester powder coatings. Advanced electrostatic coating lines apply an even 60–90 micron layer, enduring 500+ hours of continuous salt spray testing (ASTM B117 standard) for superior scratch resistance and long-term corrosion protection in humid or cold storage environments.
4. IoT-Enabled Structural Health Monitoring
Modern teardrop upright frames are increasingly integrated with smart strain gauges and displacement sensors. Connected to warehouse management systems (WMS), these wireless nodes detect accidental forklift impacts, overload conditions, or seismic shifting in real-time—allowing maintenance crews to mitigate structural risks long before catastrophic frame collapse occurs.
Strategic Sourcing Protocol: How to Audit a China Teardrop Rack Factory
A rigorous factory audit must go beyond visual inspection. Reliable racking manufacturers provide mill test certificates (MTC) verifying raw material chemical composition (Carbon, Manganese, Silicon limits) and mechanical tensile yield strength. Crucially, third-party structural testing (such as SGS or TÜV Rheinland) must validate column stub compression, beam end-clip moment rotation curves, and baseplate anchor shear limits under dynamic load cycles.
Send an InquiryKey Drivers Shaping Global Teardrop Rack Sourcing
Understanding supply chain shifts, localized regional building codes, and total cost of ownership (TCO) considerations.
1. The Shift Toward Standardized Modular Components
Global logistics providers operating across multiple continents require modular racking components that permit seamlessly scalable expansions. The universal teardrop profile has become the global standard due to its backward compatibility with existing teardrop installations. B2B buyers can order standard frames and step beams in bulk containers, storing component inventory locally for immediate deployment as warehouse demand scales.
2. Seismic Engineering and Baseplate Anchorage
Warehouse installations in seismic-prone zones (such as the US West Coast, Latin America, Japan, and New Zealand) demand specialized rack baseplate calculations. Modern China teardrop rack factories utilize advanced finite element analysis (FEA) software to simulate earthquake ground acceleration forces. Heavy-duty seismic baseplates, anchor bolt patterns, and oversized footplates distribute overturning moments safely into the concrete floor slab.
3. Total Cost of Ownership (TCO) Optimization
When procuring racking from China, experienced buyers factor in lifetime maintenance costs alongside FOB prices. Opting for robotically welded beam end connectors, anti-impact column protectors, heavy-duty row spacers, and wire mesh decking dramatically reduces operational rack damage caused by daily forklift operations, minimizing costly downtime and rack replacement expenses over a 15-to-20-year service life.
China Teardrop Pallet Rack Sourcing FAQ
Direct answers from our engineering and export team regarding structural standards, custom layout design, and shipping protocols.
Are your teardrop pallet racks compatible with major US brands?
Yes. Our teardrop pallet racking systems are engineered around standard 2-inch pitch center-to-center hole patterns. This ensures complete physical interchangeability with most major North American teardrop brands (including Interlake Mechalux, UNARCO, Hannibal, Ridg-U-Rak, and Husky). Beams and upright frames can be integrated into existing warehouse layouts seamlessly.
Can you design a custom racking layout based on my floor plan drawing?
Absolutly. Send us your building floor plan (CAD, PDF, or dimensional sketch), clear height measurements, pallet dimensions (W x D x H), unit load weight, forklift model, and operating temperature. Our structural engineering team will deliver a comprehensive 3D/CAD layout drawing, bill of materials (BOM), and certified beam frame capacity calculations free of charge prior to order confirmation.
What design codes and structural standards do your racking systems comply with?
Our longspan shelving is engineered to AS4084 requirements. Pallet racking frames, step beams, and heavy-duty structural components are manufactured in strict reference to RMI ANSI MH16.1, EN 15512, and FEM 10.2.02 standards. Mill test reports (MTC) and third-party physical load test certificates (SGS/TÜV) are available upon request.
What is the typical production lead time for sea freight container orders?
Standard teardrop racking production typically takes 15 to 25 days following drawing sign-off and deposit receipt. For large-scale automated project installations, custom powder-coat color specifications, or high-density radio shuttle rack systems, timelines are finalized against project milestones and communicated transparently in your production schedule.
How are racking frames and beams packaged for international shipping container transport?
All upright frames, step beams, and bracing members are strapped into heavy-duty knock-down bundles using steel banding, corner edge protectors, and waterproof plastic stretch wrapping. Beams are stacked face-to-face with wooden dunnage strips to prevent powder coating abrasion during ocean transit. Small accessories (safety pins, baseplates, anchor bolts) are packed in reinforced wooden crates or heavy corrugated cartons.
Do you offer OEM/ODM manufacturing and customized color branding?
Yes. We provide complete OEM/ODM production services for global distributors, rack dealers, and system integrators. We can customize beam profiles, frame depths, steel gauges, safety lock mechanisms, and apply custom RAL powder coat colors matching your corporate branding alongside private logo labeling.
Request Your Custom Teardrop Racking Layout & Quotation Today
Partner with a trusted China teardrop rack manufacturer boasting over two decades of engineering excellence. Our engineering team stands ready to review your warehouse architectural floor plans, calculate optimum frame profiles, and deliver factory-direct pricing for your project.
Send an InquiryWhat to Provide for a Fast 24-Hour Quotation:
- Warehouse floor dimensions and available clear ceiling height
- Pallet specifications: Width x Depth x Stacking Height (including load)
- Maximum target load weight per pallet position
- Forklift make/model, maximum lift height, and minimum aisle turning radius
- Operating environment: Ambient room temperature vs Cold storage / Freezer
