High-Performance Mold & Heavy-Duty Storage Racks
Explore our export-grade die racks, drawer shelving systems, and high-density industrial racking engineered for maximum safety and space efficiency.
Custom Storage

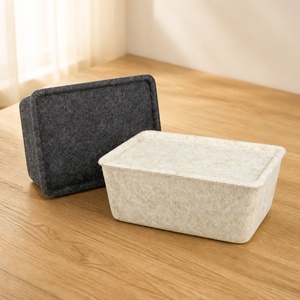

Seamless Heat Pressed Felt Storage Box Systems
Modular stackable storage solutions designed for sensitive tool components and factory organizational requirements.
Contact Us
Heavy-Duty Logistics
Warehouse Transport Steel Mesh Wire Stillage Cage
Collapsible metal wire container pallet boxes built for heavy components, stampings, and mold accessories.
Contact Us
Sheet & Plate Storage
High-Capacity Vertical Sheet Rack System
Full-service vertical storage racks designed for heavy metal sheets, raw plate materials, and industrial glass panels.
Contact Us
Factory Direct

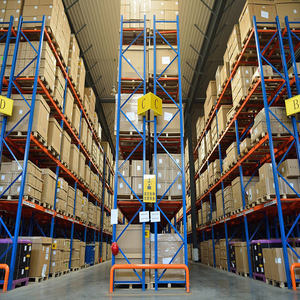

Heavy Duty Pallet Racking System for Shops & Factories
Custom beam and upright warehouse systems widely exported to Thailand, Malaysia, Brunei, and global markets.
Contact Us
High-Density VNA
Very Narrow Aisle Storage System (VNA Rack)
Maximizes floor footprint for high-bay mold component storage utilizing specialized reach and turret trucks.
Contact Us
Modular Shelving
Multi-Tier Heavy-Duty Vertical Organizer Shelves
Versatile boltless steel shelving units built for organized toolroom, hardware, and light die accessory storage.
Contact Us
Automated AS/RS

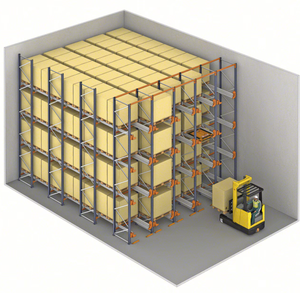

Intelligent 4-Way Shuttle Automated Pallet System
Next-generation smart storage system providing automated dense handling for heavy industrial loads and tooling dies.
Contact Us
High Tonnage

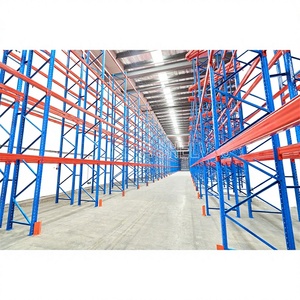

Double Deep Heavy Duty Warehouse Steel Racks
High-bay 6-meter steel rack structure engineered for dense double-deep pallet and mold base storage.
Contact UsWhy Sourcing Directly From Our Factory Yields Superior ROI
We combine advanced cold roll-forming metallurgy, strict structural testing, and custom OEM engineering to empower industrial toolrooms worldwide.
20+ Years Production
Continuous operational growth since 2004 with specialized focus on heavy-duty die & mold racking.
Certified Metallurgy
High-tensile Q235B and Q355B steel coils tested with mill test certificates and load validation.
Free 3D / CAD Layouts
Engineered structural simulations, load deflection math, and complete bill of materials included free.
OEM / ODM Engineering
Custom drawer extension rates, colors, beam profiles, and crane interface configurations.
Global Export Standards
Engineered compliant with ANSI RMI MH16.1, FEM 10.2.02, and AS4084 Australian standards.
Engineering Whitepaper: Structural Mechanics of Heavy-Duty Mold Racks
In modern plastic injection molding, metal stamping, and die-casting manufacturing, high-density mold storage racks are not merely static shelving—they are critical load-bearing structural systems that directly dictate workplace safety, operational throughput, and tool preservation. Heavy dies can range anywhere from 500 kg to over 10,000 kg per unit. Managing these extreme point loads requires precise structural steel calculation, specialized mechanical slide engineering, and rigorous anti-tipping safety mechanisms.
When procuring from China wholesale mold storage rack factories, enterprise buyers must evaluate suppliers based on structural deflection limits, yield strength of raw materials, dynamic friction coefficients of drawer bearings, and compliance with recognized international design codes such as ANSI RMI MH16.1, FEM 10.2.02, and AS4084-2012.
1. Structural Steel Grade & Cold-Formed Profile Design
The structural integrity of a mold rack relies fundamentally on its vertical upright frames and horizontal drawer support beams. Factory-direct suppliers in China utilize two main grades of structural carbon steel:
- Q235B Cold-Rolled Steel: Yield strength $\sigma_y \ge 235 \text{ MPa}$. Ideal for standard mold racking with shelf capacities up to 1,500 kg per level.
- Q355B High-Tensile Alloy Steel: Yield strength $\sigma_y \ge 355 \text{ MPa}$. Used for extra heavy-duty drawer racks carrying 2,000 kg to 5,000+ kg per slide out drawer level.
2. Drawer Extension Mechanics: 60-80% Semi-Open vs. 100% Full-Open Drawers
Selecting the correct drawer glide mechanism dictates how molds are handled by overhead hoists, monorail cranes, or forklift trucks:
Semi-Open Drawer Racks (60% to 80% Extension): Utilize heavy-duty steel roller bearings running along precision CNC-punched guide channels. Ideal for medium-weight injection molds (500 kg – 2,000 kg). The unextended portion of the drawer provides continuous structural balance, reducing tipping moments.
Full-Open Drawer Racks (100% Extension): Feature multi-stage telescopic ball-bearing slides or articulated structural guide arms. When pulled out fully, 100% of the drawer platform clear space is exposed directly beneath an overhead crane hook. This eliminates dangerous angular rigging pulls and ensures strictly vertical crane lifting.
3. Fail-Safe Anti-Tipping & Multi-Drawer Interlock Systems
The single greatest hazard in heavy die storage operations is center-of-gravity displacement caused by extending multiple heavy drawers simultaneously. Professional OEM manufacturers in China integrate mechanical interlock safety devices:
- Mechanical Interlocking Pin Latch: Automatically locks all adjacent drawers in the closed position as soon as one single drawer is pulled open.
- Self-Locking Drawer Retention Pin: Secures drawers firmly inside the main upright structure during seismic activity or accidental forklift impact.
- Heavy-Duty Concrete Anchor Baseplates: High-tensile M16/M20 mechanical wedge anchors securing upright footplates directly into reinforced $250\text{mm}+$ concrete slab foundations.
Mold Storage Rack Configuration Matrix
Compare standard industrial configurations engineered by leading Chinese suppliers to match your specific toolroom load requirements.
| Rack Type / Model | Load Capacity / Level | Drawer Extension | Lifting Operation | Safety Features | Best Application |
|---|---|---|---|---|---|
| Standard Drawer Mold Rack | 500 kg – 1,500 kg | 60% – 80% Semi | Manual Pull / Light Crane | Self-locking Pin, End Stop | Plastic Injection, Small Stamping |
| Heavy-Duty Full Open Slide Rack | 2,000 kg – 5,000 kg | 100% Full Extension | Overhead Crane / Monorail Hoist | Mechanical Multi-Drawer Interlock | Automotive Stamping & Die Casting |
| Overhead Crane Integrated Rack | 1,000 kg – 3,000 kg | 60% – 100% Custom | Built-in Gantry Crane + Electric Hoist | Limit Switches, Dual Cable Brakes | Facilities Without Factory Overhead Cranes |
| Non-Drawer Heavy Beam Mold Rack | 3,000 kg – 10,000+ kg | Fixed Beam Level | Heavy Forklift / Turret Truck | Safety Beam Locks, Frame Ties | Ultra-Large Mold Base Storage |
| Automated AS/RS Mold Rack System | 1,000 kg – 4,000 kg | Automated Extractor | WMS Controlled Stacker Crane / AGV | IoT Weight Sensors, Photoelectric Stop | Smart Industry 4.0 Factories |
Tailored Racking Configurations for Industrial Toolrooms
Review engineered modular storage architectures built to withstand demanding industrial environments.
Heavy-Duty Roll-Out Die Racks with Overhead Crane Rail
Designed specifically for mold maintenance shops lacking existing overhead bridge cranes. Features a top-mounted I-beam structure equipped with a motorized or manual chain hoist, enabling seamless mold loading directly from the extended drawer platform.
- Load Rating: Up to 3,000 kg per drawer
- Built-in top gantry crane beam structure
- 100% full drawer extension for vertical crane access
Middle-Duty Modular Drawer Shelving Units
Ideal for plastic injection molders operating small-to-medium ton machinery (50T – 300T clamping force). Provides rapid manual pull-out access for molds weighing under 1,000 kg, incorporating adjustable shelf pitch heights spaced at 50mm increments.
- Load Rating: 800 kg – 1,200 kg per shelf
- Smooth manual slide bearing mechanism
- Fully modular starter & adder unit design
Ultra High-Tonnage Fixed Beam Mold Pallet Racking
Engineered for massive automotive stamping dies and large structural casting molds weighing up to 15,000 kg per bay. Utilizes heavy structural C-channel or box beams reinforced with heavy steel deck plates and impact protection upright guards.
- Load Rating: Up to 15,000 kg per level
- Heavy structural steel section columns
- Forklift heavy-duty post guide protection
Future Procurement Trends in Industrial Mold Storage Racking (2025–2030)
As global manufacturing shifts rapidly toward Industry 4.0 automation, lean inventory control, and stringent zero-accident workplace safety policies, procurement requirements for mold storage equipment are undergoing significant evolution. Buyers sourcing from China wholesale mold storage rack suppliers must align their purchasing strategies with key technological trends:
1. Smart IoT & Weight Sensors
Integration of strain-gauge weight sensors and RFID tags into individual drawer shelves. Real-time data syncs with factory MES/WMS software to monitor exact mold location, usage cycles, and weight distribution alarming.
2. Automated AS/RS Die Retrieval
Transitioning from manual crane operation to automated stacker cranes and AGVs. High-bay automated mold storage racks reduce changeover downtime (SMED) by delivering specific dies directly to press machines in minutes.
3. Eco-Friendly Powder Coatings
Adoption of non-toxic, TGIC-free epoxy polyester thermosetting powder coatings with zero VOC emissions. High salt-spray resistance (500+ hours) ensures anti-corrosion protection in humid molding plant environments.
5-Step Engineering & Quality Control Workflow
How our Nanjing factory delivers precision-engineered racking systems tailored to your plant dimensions.
Design Brief & Floor Layout
Analysis of mold dimensions, maximum weights, clear warehouse height, and crane lifting paths.
3D CAD & FEA Simulation
Finite Element Analysis (FEA) testing structural deflections, stress concentrations, and safety factors.
Precision CNC Fabrication
Automated roll-forming, laser cutting, robotic welding, and automated powder coating application.
Load Testing & QC Check
150% overload deflection testing, coating thickness inspection, and pre-shipment component assembly validation.
Procurement & Technical Support FAQ
Get clear, expert answers to common engineering, ordering, and logistics questions from enterprise buyers.
What parameters are required to generate a custom mold rack CAD layout?
To prepare an accurate 3D/CAD drawing and engineering quotation, our factory requires: (1) Maximum mold dimensions (Length x Width x Height), (2) Maximum weight per mold and total load per shelf level, (3) Number of shelf levels required, (4) Available clear warehouse height, and (5) Handling method (manual pull, overhead crane, or forklift).
How do Chinese mold rack suppliers ensure structural safety during drawer extension?
Leading Chinese factories incorporate mechanical fail-safe systems including: multi-drawer interlock latches (which prevent more than one drawer from opening at a time), end-stop safety pins, dynamic safety factors between 1.5 to 1.65 based on yield strength, and heavy-duty floor anchor footplates secured to concrete slabs.
What is the difference between 60% semi-open and 100% full-open mold drawer racks?
60% to 80% semi-open drawer racks extend partially, utilizing internal roller bearings; they are cost-effective for lighter molds or where side crane access is feasible. 100% full-open drawer racks feature heavy telescopic slides or articulated arms that extend the entire shelf clear of the top frame, allowing overhead cranes to lower hooks directly vertically without obstruction.
What design standards do your warehouse racking systems follow?
Our heavy-duty racking products are engineered in reference to major international standards including ANSI/RMI MH16.1 (USA standard for industrial steel storage racks), FEM 10.2.02 (European specification), EN 15512, and AS4084-2012 (Australian standard for steel storage racking). Third-party material test reports and mill certificates are supplied with orders.
What is the typical manufacturing lead time for wholesale direct orders?
Standard customized mold storage rack orders typically take 15 to 25 calendar days for production following final approval of engineering CAD drawings. Large-scale factory installations or automated AS/RS projects are scheduled according to project milestones detailed in the contract.
Do you provide OEM / ODM private labeling and custom color finishing?
Yes. As a direct manufacturer operating in-house powder coating lines, we offer complete OEM/ODM customization. Buyers can specify custom RAL powder coating colors (such as RAL 5015 Blue, RAL 2004 Orange, or RAL 7035 Grey), custom column punch profiles, and private branding label plates.
Ready to Optimize Your Plant's Mold Storage Efficiency?
Contact our structural engineering team today to receive a free 3D CAD layout, load capacity calculation, and direct factory-wholesale price quotation tailored to your plant floor plan.
