Featured Industrial Racking & OEM Systems
Explore our precision-engineered high-density storage solutions, custom structural cart configurations, and industrial racking equipment crafted for optimized warehouse throughput.

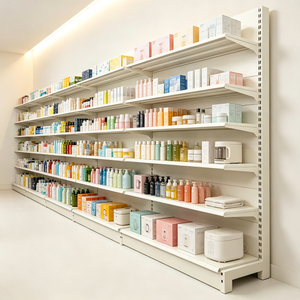

Cream White Metal Supermarket Shelf Adjustable Layer Retail Display Rack
Heavy-duty modular steel back-panel shelving engineered for retail inventory staging, backroom storage, and high-load commercial distribution.
Get Catalog

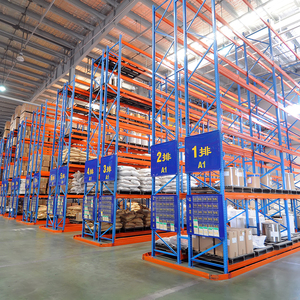

Industrial Heavy-Duty Push-Back & Multi-Tier Mezzanine Rack Systems
Integrated high-density warehousing framework supporting 2 to 6 pallet-deep LIFO push-back carts and heavy cantilever structural beams.
Get Catalog

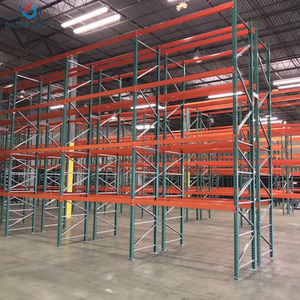

Selective & Push Back Heavy-Duty Pallet Racking Integration
Hybrid structural rack arrangement maximizing floor-space utilization by combining selective pallet picking with high-density push-back lanes.
Get Catalog

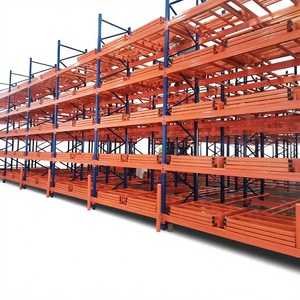

Cold-Rolled Steel Heavy-Duty Gravity Dense Push-Back Storage System
Intelligent gravity-assisted push-back racking crafted from high-tensile Q235B/Q355B cold-rolled steel for extreme bulk goods management.
Get Catalog
H-Shaped Steel Frame OEM Push Mechanical Assembly Component
Precision-welded heavy steel structural frame component designed for custom mechanical load distribution and equipment testing beds.
Get Catalog
Heavy-Duty Metal Structural Push Component & Adjustable Support Frame
Custom OEM powder-coated steel support frames featuring multi-point boltless height adjustment and heavy-duty load capacity.
Get Catalog
Custom OEM Solid Wood & Composite Modular Storage Racks
Specialized eco-friendly timber-reinforced racking components tailored for non-marking industrial parts handling and custom OEM orders.
Get Catalog
Multifunctional Heavy-Duty Push Modular Platform & Nesting Cart Base
Compact high-load polymer and steel composite platform modules engineered for mobile push-back shuttle carriage systems.
Get CatalogRandom Racks Storage Equipment: Two Decades of Manufacturing Leadership
Established in 2004 in Nanjing, Jiangsu, Random Racks Storage Equipment Co., Ltd. operates a state-of-the-art manufacturing facility specializing in high-density warehouse storage systems, heavy-duty structural steel platforms, and custom OEM push-back racking solutions.
AS4084 & FEM Standard Compliance
Every OEM push back racking structure engineered by Random Racks adheres stringently to AS4084-2012, EN 15512, FEM 10.2.02, and RMI guidelines. Full structural calculations and third-party mechanical stress test reports are provided for every global order.
Full In-House Manufacturing Cycle
From raw steel coil continuous cold-roll forming to robotic automated MIG welding and high-durability electrostatic epoxy powder coating, our facility maintains end-to-end quality assurance with traceable mill test certificates (MTC).
Tailored OEM / ODM Customization
We deliver tailored nested cart designs, custom upright column profiles (80mm to 140mm width), specialized low-temperature bearings for cold storage (-30°C), and custom corporate RAL color powder coating matches.
Mechanics & Structural Architecture of Push Back Racking
A detailed examination into nested cart mechanics, gravity-flow physics, and structural safety parameters for high-density Last-In, First-Out (LIFO) inventory management.
1. Kinematic Cart-on-Rail Principles
Push-back pallet racking utilizes a series of nested rolling carts resting on inclined structural steel rails set at a precise incline of 3% to 5% (approximately 3/8" pitch per foot). The system operates on gravity assistance: when a forklift pushes the first pallet backward, it initiates movement in the nested cart assembly, revealing the next underlying cart. When unloading, gravity smoothly rolls remaining pallets forward to the picking face.
Our OEM cart designs use low-profile nested structural channels that minimize vertical stack height loss (saving up to 2.5 inches per level compared to traditional systems), ensuring maximum vertical cube utilization inside height-constrained facilities.
2. Structural Load Distribution & Column Engineering
Unlike standard selective racks where load forces are primarily vertical, push-back racking subjects upright frames to dynamic horizontal surge loads during loading cycles. Random Racks solves this shear stress through specialized heavy-gauge Q355 structural steel upright columns paired with heavy-duty dynamic bracing.
Cart wheels feature high-precision sealed steel ball bearings rated for unit loads up to 1,500 kg (3,300 lbs) per pallet. Integrated anti-pop-out safety clips prevent cart dislodgement caused by erratic forklift operating speeds.
Industrial Storage Systems: Engineering Specification Comparison
| Storage System Type | Storage Density Ratio | Pallet Selectivity | Inventory Flow Strategy | Aisle Space Efficiency | Recommended SKU Profile |
|---|---|---|---|---|---|
| OEM Push Back Racking | High (75%–85%) | Medium (2–6 deep per lane) | LIFO (Last-In, First-Out) | High (Aisle space reduced by 40%) | Medium-volume SKUs with 5–20 pallets per SKU |
| Selective Pallet Rack | Standard (40%–50%) | 100% Immediate Access | FIFO / LIFO Flexible | Standard (Requires 3.0m–3.5m aisles) | High SKU count, low pallet count per SKU |
| Drive-In Racking | Very High (85%–90%) | Low (Single lane access) | Strict LIFO | Maximum (Eliminates internal aisles) | Huge volume of very few homogeneous SKUs |
| Gravity Pallet Flow | Very High (80%–90%) | Medium (Lane based) | Strict FIFO (First-In, First-Out) | High (Separate loading & picking aisles) | Perishables, date-sensitive FMCG & cold storage |
| Radio Shuttle Racking | Maximum (90%+) | Automated / Semi-Selectable | FIFO or LIFO Programmable | Ultra-High (Deep lane automation) | High throughput cold storage & automated DCs |
Future Industry Trends in Push Back Racking (2025–2030)
Key market shifts, material developments, and automation integrations shaping modern supply chain infrastructure procurement globally.
1. Cold-Chain Resiliency & Low-Temp Lubrication
Global demand for refrigerated and frozen food logistics is accelerating push-back rack adoption in cold storage (-25°C to -30°C). Procurement trends favor custom stainless steel cart wheels and synthetic arctic-grade grease compounds that resist freezing lockup, eliminating mechanical maintenance downtime.
2. AMR / AGV Co-Engineering Compatibility
As warehouses transition from manual forklifts to Autonomous Mobile Robots (AMRs) and Reach-Truck AGVs, OEM push-back systems are being re-engineered with laser-guided entry funnels, precision optical reflective targets, and tighter tolerance front-stop bumpers for robotic positioning accuracy.
3. High-Tensile Steel & Eco Carbon Footprint
Modern rack buyers prioritize environmental metrics. By utilizing micro-alloyed Q355B high-tensile steel, Random Racks reduces raw structural steel weight by 12% while maintaining total load carrying capacities, resulting in lower freight emissions and reduced project carbon intensity.
Our Custom OEM Manufacturing Process
From initial floor-plan CAD analysis to final container packing, our 5-stage quality process guarantees zero-defect structural integrity.
Data Analysis & CAD Layout
We review floor slab loading capacity, clear height under joists, pallet dimensions (W x D x H), unit weight, and forklift mast height to model an optimized 3D CAD layout free of charge.
FEA Structural Simulation
Our engineers run Finite Element Analysis (FEA) software to calculate sway resistance, beam deflection ratios (L/200 standard), and seismic shear safety limits tailored to your local building codes.
Precision Roll-Forming & QC
Continuous roll-forming lines shape high-tensile structural profiles. Optical sensor inspection validates hole pitch accuracy and profile wall thickness before robotic welding.
Frequently Asked Questions by Industrial Buyers
Expert answers to common engineering, procurement, and installation inquiries regarding custom OEM push-back racking systems.
How does push-back racking differ from drive-in racking in operational efficiency? +
Push-back racking allows operators to store 2 to 6 pallets deep per lane while keeping forklifts in the main aisle. Unlike drive-in racking—where forklifts must enter the racking matrix, increasing risk of rack collision—push-back systems significantly decrease forklift damage, cut loading cycles by 30% to 40%, and provide superior SKU selectivity since each lane operates independently on a LIFO basis.
What pallet types and sizes are compatible with your OEM push-back carts? +
Our OEM push-back cart systems can be customized to accommodate standard GMA (48" x 40"), EUR Pallets (1200mm x 800mm and 1200mm x 1000mm), Australian Standard Pallets (1165mm x 1165mm), as well as plastic skids and steel pod bins. For non-standard pallets or weak timber pallets, we design full-bottom steel mesh trays or multi-runner cart beds to prevent bottom sag.
Can push-back racking be installed inside cold storage and deep freeze facilities? +
Yes. Random Racks designs specialized cold-room push-back racking capable of operating reliably in temperatures down to -30°C (-22°F). We utilize cold-tolerant structural steel grades (such as Q355D), low-temperature powder coatings, anti-freeze synthetic lubricants, and stainless-steel axle pins to prevent bearing lock and thermal embrittlement.
What is the typical lead time for custom OEM manufacturing and global shipping? +
Standard OEM manufacturing lead time is 15 to 25 days following final CAD layout approval and engineering sign-off. We pack all components using heavy steel banding, protective wooden cradles, and plastic shrink wrap designed to withstand ocean freight transit across North America, Europe, Australia, and the Middle East.
Do you supply third-party load test documentation and structural warranty? +
Absolutely. Every order includes steel mill test certificates (MTC), dimensional inspection reports, and structural load compliance certificates matching AS4084 / EN 15512 specifications. We provide a 10-year structural warranty on all main frames and beams manufactured by Random Racks.
