Engineering-Grade Storage Systems & Equipment
Explore our certified structural steel racking solutions manufactured for extreme load capacities and high-frequency warehouse logistics.

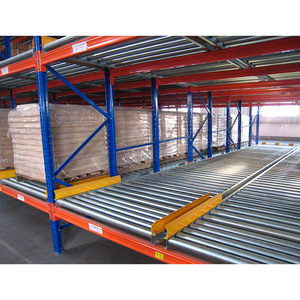

FIFO High Efficient Warehouse Storage Gravity Pallet Flow Racks Roller Rack
Integrated gravity roller lanes utilizing kinetic speed controllers for strict first-in, first-out inventory handling.

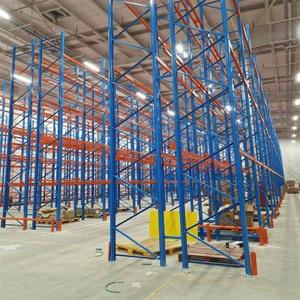

Heavy Duty Forklift-Operated Selective Pallet Racking System
Engineered for direct 100% pallet accessibility with structural cold-rolled steel profiles for heavy unit loads.
Industrial Heavy Duty Double Deep Pallet Racking System
High-density configuration storing pallets two deep, increasing vertical cube utilization by up to 30%.

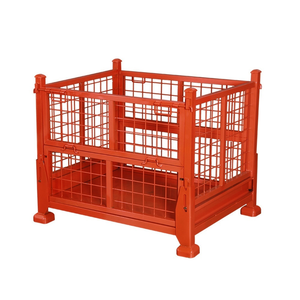

Galvanized Collapsible Steel Wire Mesh Stackable Stillage Container
Hot-dip galvanized, drop-gate collapsible wire containers designed for secure stackability and freight saving.

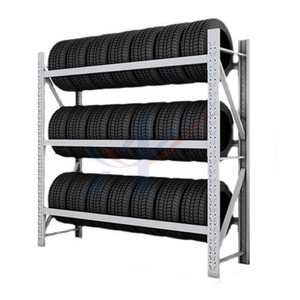

Modular Industrial Tire Storage & Stacking Rack Systems
Custom engineered modular tire cradles supporting high-density vertical tier storage for auto OEMs and 3PLs.

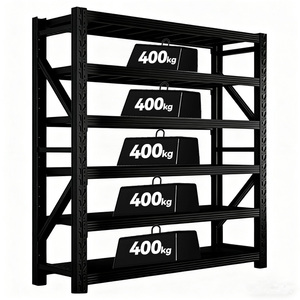

Multi-Layer Boltless Longspan Steel Shelving Units (400kg/Tier)
Adjustable steel shelf levels compliant with AS4084 guidelines for heavy hand-loaded industrial inventory.

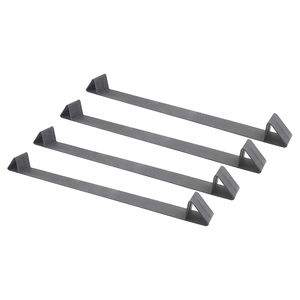

Heavy Industrial Steel Coil Chock Cradle & Storage Rack System
Precision-fabricated cradles designed to securely lock cylindrical coils and rolls into safe static storage.

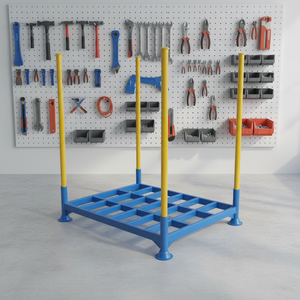

Custom Stackable Steel Stillage Rack for Textile & Cold Storage
Removable post racking structures designed for non-standard roll goods, textile bolts, and cold room logistics.
Engineering Competencies & OEM Manufacturing Modules
Architectural steel integrity, automated fabrication lines, and bespoke ODM logistics infrastructure.
High-Grade Q235B & Q355B Steel
Raw structural steel sourced exclusively from prime state mills, featuring mill test certificates (MTC) and verified yield stress durability.
Automated Roll-Forming
Continuous cold-roll profile mills with up to 18 rolling passes ensuring dimensional tolerances within ±0.5mm across all upright columns.
Robot Welding & Powder Coating
Precision Panasonic robotic welding cells coupled with automatic 60–80 micron electrostatic epoxy powder coating for superior salt-spray corrosion resistance.
Architectural Engineering & Structural Integrity of Storage Systems
In modern supply chain engineering, warehouse storage equipment is no longer viewed merely as passive steel racking; it is a structural cornerstone that dictates throughput efficiency, operational safety, and floor cube utilization. As a premiere OEM/ODM logistics storage equipment manufacturer founded in 2004 in Nanjing, China, Random Racks Storage Equipment Co., Ltd. produces structural engineering systems optimized for rigorous distribution cycles.
Designing a stable, code-compliant pallet rack or automated storage matrix requires precise Finite Element Analysis (FEA) to simulate buckling behavior, seismic acceleration forces, and live dynamic impacts caused by material handling equipment (MHE). Our engineering team evaluates structural loads based on governing international standards including EN 15512, FEM 10.2.02, RMI (Rack Manufacturers Institute), and AS4084-2012.
Material Yield Specifications & Structural Steel Profiling
The mechanical performance of racking uprights and horizontal beams hinges directly upon the micro-structure and yield strength of the raw coil feed. We utilize prime cold-rolled steel structural grades Q235B and Q355B (equivalent to SS400 / S355JR). Upright frames are roll-formed into multi-flanged 8 to 13-fold profiles that multiply the moment of inertia, effectively elevating column resistance against axial compression without unnecessarily adding dead weight.
| Racking System Type | Structural Profile / Steel Grade | Density Rating | Selectivity | Compliant Standard |
|---|---|---|---|---|
| Selective Pallet Racking | Q235B / Q355B Roll-formed Box Beams | Standard | 100% Direct Access | FEM 10.2.02 / AS4084 |
| Drive-In / Drive-Thru | Heavy Duty Top Beams & Cantilever Rails | High (Up to 75%) | LIFO / FIFO Bulk | RMI Specifications |
| Gravity Pallet Flow (FIFO) | Full-Width Steel Brake Rollers | Very High | Strict Batch Rotation | EN 15512 Code |
| Radio Shuttle Racking | Custom AGV Track Profiles (Q355B) | Maximum Cube Density | Automated LIFO/FIFO | ISO 9001 / CE Certified |
| Multi-Tier Steel Mezzanines | Structural H-Beams & C-Purlin Decks | 200% Floor Expansion | Multi-Level Access | Building Code Compliant |
Bespoke OEM/ODM Customization Framework
Global logistics facilities operate under wildly disparate warehouse footprints, clear ceiling heights, floor slab load thresholds, and climate conditions. A standardized stock racking shelf cannot fulfill the operational nuances of a cold-storage distribution center operating at -28°C or an automated e-commerce fulfillment engine requiring sub-millimeter positioning tolerances for Autonomous Mobile Robots (AMRs).
Our comprehensive OEM (Original Equipment Manufacturer) and ODM (Original Design Manufacturer) service chain enables international brand owners, systems integrators, and industrial buyers to specify exact structural parameters:
- Custom Upright & Beam Geometry: Modification of pitch hole spacing (50mm, 75mm, 76.2mm / 3-inch matrix) to allow full compatibility with legacy racking installations.
- Protective Surface Engineering: Electrostatic powder coating up to 80µm thickness for indoor distribution, or Hot-Dip Galvanizing (HDG) exceeding 65µm coating thickness for humid environments, outdoor staging, and deep freeze cold rooms.
- Custom Stillage & Container Fabrication: Tailor-made collapsible steel wire mesh cages, pallet box retainers, and heavy-duty steel tire racking frames matched to exact unit load dimensions.
- Private Label & Color Customization: Industrial RAL color matching (e.g., RAL 2004 Orange, RAL 5010 Blue, RAL 7035 Grey) paired with branded silk-screened metal nameplates and customized export packaging.
Engineering Information Gain: The Physics of Beam Deflection & Safety Factors
When specifying beam lengths for heavy pallet loads (e.g., 2,500 kg per level), structural code mandates that beam deflection under full static load must not exceed L/200 (where L is the clear span length). For a 2,700mm beam span, maximum allowable vertical deflection is strictly limited to 13.5mm. Furthermore, all load calculations incorporate a safety factor of 1.5 against structural yield stress, protecting warehouse personnel against unforeseen dynamic overloads or forklift shock impacts.
Future Trends in Logistics Storage Equipment Procurement
The material handling and supply chain equipment sector is experiencing an unprecedented structural shift. Strategic procurement managers must design storage infrastructure today that accommodates the technological shifts of tomorrow:
1. AGV & AMR Autonomous Integration Readiness
Traditional forklift-driven warehouses are rapidly transitioning toward automated hybrid systems. Storage racks are now being engineered with wider floor channel clearances, recessed baseplates, and guidance rails built to interface seamlessly with laser-guided AGVs and under-pallet AMRs. High-density Radio Shuttle Racking Systems represent the fastest-growing OEM category due to their ability to run self-charging shuttles deep into storage channels.
2. Transition to Zero-Carbon & Recyclable Steel Logistics
Environmental, Social, and Governance (ESG) directives across Europe and North America are forcing logistics providers to evaluate the lifecycle carbon footprint of their physical infrastructure. Steel storage racks represent 100% infinitely recyclable assets. Furthermore, switching from timber pallets to long-life, fire-resistant Heavy Duty Steel Pallets and stackable stillages reduces warehouse fire risks while eliminating wood-particle contamination in food and pharmaceutical operations.
3. Urban Micro-Fulfillment & Vertical Space Maximization
As industrial land costs surge near urban centers, cold chain operators and e-commerce supply chains are building upward rather than outward. Procurement trends show a 40% rise in multi-tier Steel Mezzanine Platforms and Rack-Supported Buildings, where the structural uprights of the racking matrix double as the support pillars for the building envelope itself.
Enterprise Competencies: Random Racks Storage Equipment Co., Ltd.
Established in 2004 in Guli Industry Zone, Jiangning District, Nanjing, Jiangsu, China, Random Racks Storage Equipment Co., Ltd. has grown into a premiere manufacturing enterprise spanning thousands of square meters of continuous production area.
Our factory houses modern roll-forming lines, automated punch presses, laser cutting machinery, robotic welding workstations, and a state-of-the-art continuous powder coating line. Backed by over two decades of technical expertise, our internal engineering department produces free 3D/CAD floor layouts, structural load safety reports, and bill of materials (BOM) within 24 to 48 hours of project brief submission.
20+ Years Experience
Continuous operational history since 2004, serving global distribution hubs across Europe, the Americas, Australia, and the Middle East.
Third-Party Load Tested
Verified structural load ratings supported by independent SGS and TÜV testing procedures for maximum site safety compliance.
Full Turnkey Exporting
Export-ready steel bundlings, container loading optimization to reduce ocean freight costs, and comprehensive installation manuals.
Procurement & Engineering FAQ
Direct answers to critical questions faced by industrial sourcing professionals and warehouse project managers.
Can you engineer dynamic layout drawings based on my CAD warehouse floor plan?
Yes. Our engineering department uses AutoCAD and SolidWorks to generate tailored 2D and 3D layout options based on your facility's architectural drawing, clear height beneath joists, pallet dimensions, unit weight, forklift turning radius, and sprinkler positions. This layout service is provided completely free of charge prior to order placement.
Which structural design codes do your racking systems comply with?
Our longspan shelving and selective pallet racks are designed in strict accordance with AS4084-2012 (Australian Standard for Steel Storage Racking). For European and American markets, structures can be designed to mirror EN 15512, FEM 10.2.02, and RMI standards, backed by third-party steel mill test reports (MTC) and structural load validation.
How do I choose between Drive-In, Push-Back, and Gravity Pallet Flow Racking?
Choose Drive-In Racking if you have high volume, low SKU count, and can operate under Last-In, First-Out (LIFO) inventory rotation. Select Push-Back Racking for 2 to 5 deep pallet storage per lane when faster forklift access is required without driving into the structure. Opt for Gravity Pallet Flow Racking when strict First-In, First-Out (FIFO) rotation is mandatory, such as date-sensitive food, beverage, or cold chain logistics.
What is the standard production lead time for OEM/ODM bulk container orders?
Standard OEM manufacturing lead time is generally 15 to 25 calendar days after layout drawing approval and deposit receipt. For complex multi-tier mezzanine platforms or custom automated AS/RS racking components, lead times are scheduled based on project scope and phased shipping requirements.
What surface treatments are available for cold-storage or corrosive environments?
For standard ambient warehouses, we apply an electrostatic epoxy powder coating (60–80 microns thick) cured at high temperatures for scratch and impact resistance. For deep-freeze cold rooms, high-humidity food plants, or exterior applications, we recommend Hot-Dip Galvanizing (HDG), where steel parts are submerged in molten zinc to create a permanent anti-corrosion layer over 65 microns thick.
Ready to Optimize Your Logistics Storage Infrastructure?
Connect directly with our senior racking design engineers. Submit your warehouse floor plan today for a complimentary 3D layout design, load calculation report, and factory-direct OEM price quote.
