Precision-Engineered Industrial Storage Systems
Explore our heavy-duty racking solutions designed for high-density logistics, cold chain compliance, and automated warehouse environments.
Engineering Excellence in OEM/ODM Warehouse Storage Manufacturing
In modern industrial logistics, static storage equipment has evolved into dynamic, highly engineered structural systems designed to optimize vertical clear heights, improve SKU throughput speeds, and maintain stringent structural safety under intense operational loads. As a premier OEM/ODM warehouse storage system manufacturer with over two decades of metallurgical and structural manufacturing experience since 2004, our facility delivers high-yield cold-formed steel solutions tailored to global operational environments.
Information Gain Insight: Structural rack integrity is not merely a function of steel gauge thickness. It requires precise calculation of cross-sectional moment of inertia, cold-roll residual stress distribution, and connection stiffness under dynamic forklift impacts and seismic loading profiles conforming to EN 15512, RMI, and AS4084-2012 standards.
Modern distribution centers, 3PL fulfillment hubs, cold storage facilities, and automotive assembly lines demand specialized racking designs that go far beyond standard off-the-shelf catalog offerings. OEM/ODM customization allows system integrators and warehouse facility managers to engineer upright profile geometry, beam connector hook counts, decking substrate composition, and powder-coat chemistry precisely to their material handling equipment (MHE) constraints, local building codes, and inventory rotation rules (FIFO vs. LIFO).
Metallurgical Engineering and Structural Steel Selection
Our OEM/ODM manufacturing processes strictly utilize high-tensile structural steel grades, including certified Q235B and Q355B (equivalent to SS400 and S355JR). Selecting the appropriate steel chemistry guarantees optimal yield strength ($f_y \ge 235 \text{ MPa}$ to $355 \text{ MPa}$) while preventing hydrogen embrittlement during acid pickling prior to electrostatic powder coating.
By employing automated continuous roll-forming lines with multi-station punching dies, upright columns maintain strict dimensional tolerances ($\pm 0.5 \text{ mm}$ pitch accuracy). This dimensional precision is vital for the seamless integration of automated guided vehicles (AGVs), radio shuttle carts, and automated storage and retrieval systems (AS/RS) where millimeter-level positioning tolerances are non-negotiable.
Finite Element Analysis (FEA)
Every custom OEM upright section undergoes rigorous FEA modeling to simulate axial compression, sway buckling, and localized beam-to-column connection stiffness prior to tooling steel extrusion.
AS4084 & EN15512 Compliance
Fully compliant with global structural standards. Mechanical properties verified via independent third-party destructive load testing and mill certificate verification.
Surface Passivation & Finish
Automatic 9-stage pre-treatment wash combined with thermosetting epoxy polyester powder coating provides superior corrosion resistance exceeding 500 hours of salt spray testing.
Engineering Matrix: Technical Selection for Industrial Racking Systems
To assist warehouse architects, procurement managers, and logistics consultants in selecting the optimal structural architecture, the following engineering matrix outlines mechanical performance parameters across primary OEM/ODM storage typologies.
| Racking Architecture | Space Density | Inventory Rotation | Typical Load Capacity | Forklift / MHE Integration | Primary Industrial Use-Case |
|---|---|---|---|---|---|
| Selective Pallet Racking | Standard (40-50%) | 100% Direct Access (FIFO) | 1,000kg - 4,500kg / Level | Counterbalance, Reach Trucks | General Warehousing, FMCG, 3PL Hubs |
| Drive-In / Drive-Thru | High (75-85%) | LIFO (Drive-In) / FIFO (Drive-Thru) | 1,000kg - 1,800kg / Pallet | Narrow Reach Trucks | Cold Storage, Bulk Homogeneous Goods |
| Push-Back Racking | High (65-75%) | LIFO (2 to 6 Pallets Deep) | 1,000kg - 1,500kg / Cart | Standard Counterbalance | Buffer Storage, Seasonal Inventory |

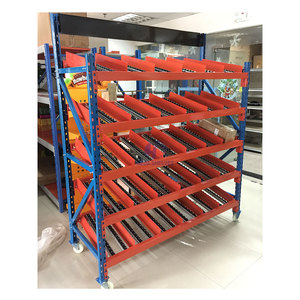

| Pallet / Carton Flow | Very High (80-90%) | Strict FIFO (Gravity Driven) | 50kg/m² (Carton) to 1,500kg (Pallet) | Order Pickers, Conveyors | Pharmaceuticals, Fast-Moving E-Commerce |
| Multi-Tier Steel Mezzanine | Maximum Vertical (200-300%) | Manual Pick / Modular Access | 300kg - 1,200kg / m² Floor | VRC Hoists, AGVs, Hand Trucks | Parts Distribution, Apparel, Office Space |
| Radio Shuttle System | Ultra-High (85-95%) | Flexible FIFO or LIFO | 1,500kg / Pallet (Semi-Automated) | Shuttle Robot + Standard Forklift | Deep Freeze, High-Throughput Manufacturing |
Global Warehouse Procurement Trends: Strategic Sourcing for 2025–2030
The global warehousing and logistics industry is experiencing a structural shift driven by labor availability constraints, skyrocketing industrial land costs, and strict ESG (Environmental, Social, and Governance) compliance directives. Procurement managers must look beyond unit purchase prices and evaluate system scalability, automated equipment compatibility, and total lifecycle sustainability.
1. Convergence of Static Racking with AGV and AMR Automation
Traditional manual racking layouts are rapidly giving way to hybrid automated environments. Modern OEM/ODM buyers are standardizing upright frame designs to include integrated sensor mounts, high-precision guidance channels, and reinforced baseplate anchor assemblies capable of handling the continuous wheel-load fatigue generated by Autonomous Mobile Robots (AMRs) and automated side-loaders.
2. Cold Chain Optimization and High-Density Thermal Energy Efficiency
With operational electricity costs soaring globally, cold-storage warehouse operators are prioritizing ultra-high-density storage architectures such as automated Radio Shuttle Racking and Mobile Articulated Racks. By reducing the overall cubic volume of conditioned air required per pallet position, enterprise procurement teams achieve energy reductions of 35% to 55% while maintaining strict temperature consistency for frozen pharmaceuticals and perishable foods.
3. Modular Steel Mezzanines & Vertical Cube Maximization
As greenfield industrial real estate developments face land zoning constraints, enterprise buyers are leveraging structural steel mezzanine platforms to convert unused overhead clear height (10m to 15m+) into multi-level picking modules. OEM custom engineering allows these platforms to integrate seamlessly with vertical reciprocating conveyors (VRCs), spiral chutes, and heavy-duty die/mold storage units.
4. Sustainable Steel Procurement & Low-VOC Finishing Technology
International environmental regulations are reshaping OEM supply chain qualification. Industry leaders require factory suppliers to supply environmental product declarations (EPDs), utilize scrap-recycled steel billets in electric arc furnaces (EAF), and enforce zero-solvent, zero-heavy-metal powder-coating applications to lower scope 3 carbon footprints.
Why Partner With Our OEM/ODM Manufacturing Facility?
As a direct manufacturer based in Nanjing, China, operating since 2004, our facility delivers end-to-end engineered storage solutions. From raw coil slit-cutting to custom CAD/3D layout rendering, we provide global B2B buyers with an uncompromised competitive advantage.
In-House Manufacturing Control
Over 50,000 square meters of production space equipped with automatic continuous cold-roll forming mills, robotic MIG welding cells, and automated punching lines.
Free 3D / CAD Layout Design
Our structural engineering department provides complimentary space planning, seismic calculation reports, and bill of materials (BOM) optimization within 24 to 48 hours.
Export & Logistics Protection
Export bundles are packed with steel strapping, protective corner edging, plastic film wrap, and custom timber cradles to guarantee zero damage during ocean transit.
Frequently Asked Sourcing & Engineering Questions
Clear, technical answers to common questions asked by enterprise buyers, logistics contractors, and procurement professionals.
Can you engineer a custom racking system based on our building's architectural drawings?
Yes. Our engineering team routinely accepts floor plans in AutoCAD (.dwg, .dxf) or PDF formats. We analyze clear height under beam, column grid spacing, floor slab slab load capacity ($kN/m^2$), sprinkler pipe clearance, and forklift aisle requirements. We return a comprehensive 2D/3D system layout and structural load specification sheet free of charge prior to order confirmation.
Which structural engineering standards do your storage systems conform to?
Our industrial pallet racking systems can be engineered to comply with target regional standards: EN 15512:2019 (European Standard for Steel Static Storage Systems), RMI MH16.1 (Specification for the Design, Testing and Utilization of Industrial Steel Storage Racks in North America), and AS4084-2012 (Australian Standard for Steel Storage Racking). Material mill certificates (EN 10204 3.1) and third-party load test reports are provided for all major project orders.
How do I choose between Drive-In, Push-Back, and Gravity Pallet Flow Racking?
Selection depends primarily on SKU count and inventory rotation requirements:
- Drive-In Racking: Ideal for high-density storage of few SKUs with large batch volumes under LIFO (Last-In, First-Out) control, commonly used in cold storage.
- Push-Back Racking: Ideal for 2 to 6 pallets deep per lane where faster accessibility is needed than Drive-In while maintaining high space utilization under LIFO rules.

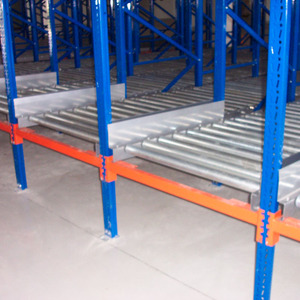

- Gravity Pallet Flow: Mandatory for strict FIFO (First-In, First-Out) operations such as food, beverage, or pharmaceutical distribution centers where expiration date tracking is critical.
What is your typical production lead time and OEM customization capacity?
Standard manufacturing lead time is 15 to 25 calendar days following drawing sign-off and deposit receipt. OEM/ODM customization capabilities include bespoke column profiles, custom RAL powder-coat color matching, specialized beam connectors, heavy-duty wire mesh decking, and private-label brand packaging for qualified distributors.
Do you provide on-site installation guidance or assembly support?
We provide full installation documentation, including detailed component assembly drawings, step-by-step installation manuals, and video tutorials. For large-scale international warehouse projects, our factory can dispatch experienced installation supervisors to oversee your local assembly team on site.
Request Your Custom Warehouse Racking Layout Today
Partner directly with a certified OEM/ODM racking manufacturer. Contact our engineering team for expert advice, structural load calculations, and factory-direct pricing within 24 hours.
