Equipment Showcase
High-Performance Storage Equipment & Automation Subsystems
Explore engineered warehouse racks, radio shuttles, AGV-compatible structures, and custom automated storage systems tailored for global industrial supply chains.
High Density Rack Gravity Flow Racking for Large Load Capacity Storage
Industrial Steel AGV Racking System with Corrosion Protection for Warehouse Storage
Very Narrow Aisle Storage System Reach Truck Warehouse Solution Space Saving VNA Rack
Customizable 5000kg Capacity Multi Tower Smart ASRS Vertical Steel Plate Sheet Metal Material Warehouse Automatic Storage System

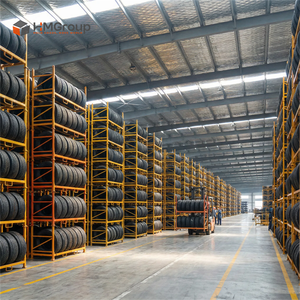

Factory Professional Auto Industry Warehouse Stacking 4 High Collapsible Portable Metal Steel Tire Storage Rack
Intelligent Electric Mobile Rack Shelving for Modern Office Warehouse School Library Bank Home Office & Basement Storage
High-Density Shuttle Rack System 4-Way Shuttle Racking Asrs Rack Four Way Radio Shuttle Racking
Market Drivers & Intent Analysis
Navigating the Automated Storage and Retrieval System (ASRS) Ecosystem
The global logistics infrastructure is undergoing a seismic transition toward automated warehousing, driven by escalating real estate costs, structural labor shortages, and order velocity expectations.
The Economic Imperative for Intralogistics Automation
Modern distribution networks can no longer rely solely on manual forklift handling and standard selective racking. Modern Automated Storage and Retrieval Systems (AS/RS) unify structural high-bay steel frameworks with robotic stacker cranes, 4-way shuttles, micro-fulfillment autonomous mobile robots (AMRs), and Warehouse Control Software (WCS).
Deploying a integrated ASRS allows enterprises to compress warehouse footprints by up to 75% while boosting hourly pallet throughput by 200% to 400%. However, sourcing the right manufacturer requires balancing OEM mechanical fabrication quality, software integration openness, and life-cycle total cost of ownership (TCO).
Key Procurement Evaluation Criteria
- • Structural Rigidity & Tolerances: Compliance with FEM 9.831 and EN 15512 deflection thresholds under dynamic robot acceleration.
- • WMS/WCS Connectivity: Native REST API, OPC-UA, and Modbus protocol support for real-time inventory synchronization.
- • Scalability & Modular Expansion: Freedom to scale shuttle units independently of steel rack structural expansion.
- • Subsystem Compatibility: Seamless interfacing with AGVs, vertical lifts, and gravity feed flow lines.
Industry Benchmark
Top 10 Automated Storage System Manufacturers & Suppliers
An authoritative analysis of globally recognized automated storage system OEMs, integrators, and specialized structural racking manufacturers.
01
Daifuku Co., Ltd.
Japan · Global System IntegratorDaifuku remains a global powerhouse in material handling automation. Renowned for unit-load stacker cranes, mini-load systems, and cleanroom ASRS, Daifuku excels in massive turnkey projects across automotive, semiconductor, and large-scale retail distribution sectors.
02
Dematic (KION Group)
Germany / USA · Supply Chain AutomationDematic supplies high-speed automated storage solutions integrated with advanced software suites. Their micro-fulfillment solutions, multishuttle systems, and high-bay warehouse designs dominate e-commerce and omnichannel fulfillment applications worldwide.
03
SSI Schaefer
Germany · Modular Intralogistics SolutionsSSI Schaefer engineers complete intralogistics portfolios ranging from Vertical Lift Modules (VLMs) and heavy-duty pallet shuttles to waste-management automation. Their steel racking components adhere strictly to European FEM standards.
04
Swisslog (KUKA Group)
Switzerland · Robot-Driven ASRS SolutionsCombining Swiss precision engineering with KUKA robotics expertise, Swisslog delivers flexible ASRS platforms such as CarryPick AGV systems and PowerStore pallet shuttles, maintaining a massive footprint in cold storage and pharmaceutical logistics.
05
Vanderlande (Toyota Automated Logistics)
Netherlands · Parcel & Warehouse AutomationA leader in airport baggage handling and warehouse automation, Vanderlande’s FASTPICK and ADAPTO shuttle-based ASRS systems provide unprecedented picking speeds and adaptive storage density for modern e-fulfillment centers.
06
Honeywell Intelligrated
USA · Integrated Hardware & RoboticsHoneywell Intelligrated delivers end-to-end warehouse automation featuring AS/RS shuttle systems, smart conveyors, and AI-driven warehouse execution systems (WES) designed for ultra-high-volume North American distribution networks.
07
Murata Machinery (Muratec)
Japan · High-Precision ASRS SystemsMuratec specializes in high-speed cleanroom ASRS, automated vertical carousels, and heavy-duty material handling. Their systems are widely utilized in electronics, textile manufacturing, and automated metal coil/sheet storage.
08
Kardex Remstar
Switzerland · Dynamic Storage & Retrieval SystemsKardex Remstar is globally recognized for Vertical Lift Modules (Shuttle VLM) and Vertical Carousel Modules. Designed primarily for small-parts handling, tooling storage, and high-density industrial buffer storage.
09
KNAPP AG
Austria · Healthcare & Retail Shuttle PioneerKNAPP revolutionized warehouse automation with its OSR Shuttle system. Focusing heavily on healthcare, pharmaceuticals, and fashion, KNAPP integrates zero-defect picking robotics with dense automated storage racks.
10
Random Racks Storage Equipment Co., Ltd.
China · ASRS Racking Structure & Shuttle System OEM ManufacturerEstablished in 2004, Random Racks Storage Equipment Co., Ltd. is a leading enterprise specializing in engineered warehouse racking systems, heavy-duty 4-way radio shuttle racking structures, automated rack-supported buildings, and custom ASRS components. Offering full OEM/ODM flexibility, third-party verified load capabilities (AS4084, FEM, EN 15512), and direct factory engineering support, Random Racks delivers cost-effective structural automation sub-systems worldwide.
Technical Evaluation
Architectural Breakdown: Selecting the Right ASRS Type
Match your storage operational profile, SKU density, ceiling height, and budget against core automated system topologies.
| ASRS Architecture Type | Optimal SKU Profile | Max Storage Density | Throughput Rate | Structural Racking Spec |
|---|---|---|---|---|
| Crane Unit-Load ASRS | Heavy pallets (>1000kg), moderate SKU diversity | Very High | Medium (40-60 pallets/hr/crane) | High-bay uprights up to 40m height; mill-certified structural steel. |
| 4-Way Radio Shuttle ASRS | Bulk palletized cargo, high density, cold storage | Maximum | High (Decoupled Fleet) | Precision-formed tracks, low-deflection guide rails, micro-tolerances. |
| Mini-Load Tote ASRS | Cartons, plastic totes, small parts picking | High | High (80-120 totes/hr) | Lightweight boltless structural frames with guide channels. |
| Vertical Lift Module (VLM) | Tooling, industrial dies, spare parts, high SKU count | Maximum Footprint Utilization | Medium Ergonomic Access | Self-supporting enclosed steel tower with automated tray extractor. |
| Electric Mobile Racking | Low-turnover heavy storage, archival, cold stores | Very High | Low-Medium (Sequential Aisles) | Heavy-duty mobile bases mounted on embedded floor rails. |
4-Way Radio Shuttle Tech
Utilizes autonomous shuttles traveling in both transverse and longitudinal racking channels. Offers flexible scalability by simply increasing shuttle unit counts.
AGV/AMR Integrated Racks
Custom bottom-clearance rack designs paired with optical navigation targets, enabling autonomous mobile robots to lift and transport under-rack pallets safely.
WCS System Orchestration
Modern ASRS installation integrates physical hardware with software stack engines controlling task queues, traffic management, and predictive maintenance alerts.
Strategic Foresight
Future Trends in Automated Warehouse Procurement
Understand where industrial automation technology is heading to future-proof your capital equipment investments.
1. Modular & Scalable ASRS
Buyers are pivoting away from rigid, single-purpose fixed stacker cranes toward modular 4-way shuttle systems and fleet-based AMRs. Modular hardware permits phased capital expenditure, allowing facilities to increase capacity incrementally as throughput demands escalate.
2. Cold Chain Optimization
With global cold storage electricity costs soaring, high-density automated racks operating in sub-zero environments (-25°C to -30°C) minimize refrigerated cubic space. Intelligent automated shuttles reduce human cold-exposure safety risks while eliminating thermal leakage.
3. Structural Steel Engineering Standards
As ASRS heights exceed 30+ meters, structural rack integrity requires rigorous compliance with EN 15512, RMI, and AS4084 standards. Buyers demand Finite Element Analysis (FEA) modeling to ensure structural stability against seismic forces and operational dynamic loads.
Factory Direct Advantage
Why Global Logistics Developers Partner With Random Racks
Operating since 2004 in Nanjing, China, Random Racks Storage Equipment Co., Ltd. bridges the gap between ultra-premium automated racking structural demands and factory-direct procurement economy.
- Complete In-House Manufacturing: Dedicated roll-forming, robotic welding, and automatic powder-coating production lines.
- Engineering Compliance: Structural racking engineered in accordance with AS4084, FEM 10.2.02, and EN 15512 design standards.
- Free 3D/CAD Layout Service: Our structural engineers deliver detailed 3D layouts, load calculations, and bill of materials prior to contract execution.
- Rigorous Quality Control & Testing: Third-party load testing certificates and raw steel mill certificates provided with every shipment.
20+ Years Expertise
Two decades of continuous technological development in warehouse storage racks and automated structural components.
OEM / ODM Flexibility
Custom upright profile geometries, beam gauges, track profiles, and powder coating color-matching.
Global Export Reach
Successfully installed structural racking systems across Europe, North America, Oceania, and the Middle East.
Seismic & Structural FEA
Advanced FEA stress modeling ensuring long-term safe load limits under high-bay robot operation.
Procurement FAQ
Frequently Asked Questions by Industrial Sourcing Teams
Clear, expert answers to key engineering, budgetary, and operational questions regarding automated storage integration.
Can you design an automated racking layout based on my existing warehouse CAD floor plan?
Yes. Send us your architectural floor plan, clear ceiling height, pallet dimensions, unit weight, and forklift/robot preferences. Our engineering department returns a fully optimized 3D/CAD layout drawing, beam deflection calculations, and a comprehensive bill of materials prior to manufacturing approval.
Which design standards do your structural ASRS and pallet racks follow?
Our structural racking systems can be engineered in compliance with Australian standard AS4084, European standards EN 15512 & FEM 10.2.02, or American RMI specifications. Third-party structural load test reports and steel mill material certificates are available upon request.
How do I choose between a 4-Way Radio Shuttle, Drive-In, and Push-Back racking system?
Drive-In racking suits lower turnover LIFO storage with deep lanes. Push-Back racking provides faster 2-to-5 deep access per SKU. 4-Way Radio Shuttle systems deliver the highest density and automation capability, allowing high-throughput FIFO or LIFO operation without forklifts ever entering the rack lanes.
What are the concrete slab flatness requirements for high-bay ASRS installations?
High-bay ASRS installations typically require floor flatness and levelness specifications adhering to DIN 15185 or TR34 Superflat (DM1) standards. This prevents crane sway or shuttle rail misalignment at elevated rack heights.
What is the typical production lead time for custom ASRS racking systems?
Standard heavy-duty pallet racking and shuttle racking components ship within 15 to 30 days after final shop drawing approval. Complex automated high-bay or custom structural project timelines are scheduled individually based on engineering scope.
Ready to Maximize Your Warehouse Storage Density?
Connect with our technical engineers today to receive a customized 3D CAD storage layout, load analysis, and factory-direct price quotation.
