Heavy-Duty Commercial Warehouse Racks & Display Systems
Integrated metallic storage structure designed for heavy unit loads, commercial logistics, and high-capacity inventory distribution centers.
2004
Year Established
20+
Years Manufacturing
AS4084
Global Structural Standard
100%
Free 3D/CAD Layout
Direct Factory Solutions
Heavy-Duty Warehouse Racking Systems
High-load steel structural designs, custom roll-formed profiles, and precision engineered components compliant with international storage protocols.
Modular Push-Up Portable Steel Frame Racking Board
Multifunctional, foldable auxiliary racking platforms ideal for flexible floor layouts, rapid deployment, and specialized handling modules.

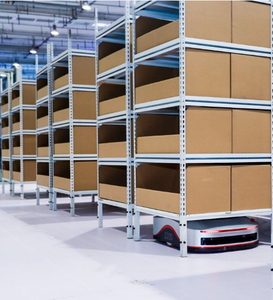

Industrial AGV Automated Steel Racking System
Precision-engineered high-tolerance structural racking optimized for Automated Guided Vehicle (AGV) docking and corrosion-resistant powder coatings.

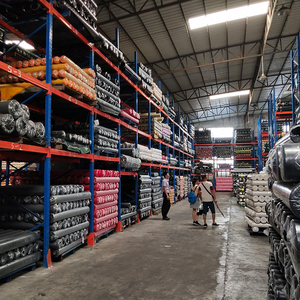

Heavy-Duty Beam Racking (1000KG - 3000KG Load Capacity)
Custom cold-rolled structural steel beam systems built to tolerate high point load capacity per level with custom pitch adjustments.
Single-Tier Telescopic Vertical Storage System
Specialized modular storage frame utilizing sliding telescopic mechanisms for high-density document, archive, or vertical media storage.
High-Density Double Deep Pallet Racking System
Increases storage density by storing pallets two deep in back-to-back configurations, balancing direct access with footprint optimization.

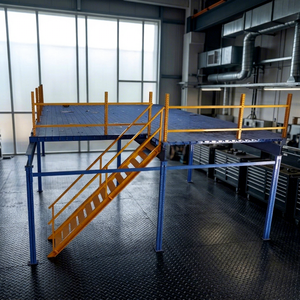

Industrial Double-Tier Steel Mezzanine Platform
Multi-level structural floor extension maximizing vertical cube space with structural steel beams, heavy-duty decking, and integrated stairways.
CE Certified Integrated Multi-Layer Shelving Mezzanine
Rack-supported walkway platform system engineered according to European CE safety protocols for manual picking and archive management.
Strategic Procurement Whitepaper
Engineering Compliance & Structural Sourcing Standards for China Pallet Racking Systems
In modern logistics management, selecting a reliable China pallet racking system supplier is no longer merely a purchasing decision based on unit steel price per ton. It is a complex engineering commitment that directly influences warehouse operational safety, inventory throughput, structural risk mitigation, and Total Cost of Ownership (TCO). As automated material handling equipment, reach trucks, and high-bay warehouses scale globally, storage rack systems must strictly adhere to certified metallurgical compositions, international load-bearing standards, and precise structural deflections.
Industrial pallet racking structures function as load-bearing structural skeletons that sustain hundreds of tons of static and dynamic loads. A failure in upright profile engineering, cold-rolled steel tensile strength, or seismic bracing design can lead to catastrophic warehouse collapses, massive financial inventory loss, and severe regulatory liability.
Key Engineering Metric: Standard selective and high-density racking components manufactured by certified Chinese suppliers utilize high-tensile Q235B and Q355B cold-rolled structural steel. Beams are engineered with a maximum permissible beam deflection ratio of L/200 under full nominal static load, strictly compliant with ANSI/RMI MH16.1, EN 15512, and AS4084:2012 specifications.
1. Critical Structural Design Regulations (AS4084, FEM, EN 15512, RMI)
Global logistics infrastructure relies on standardized safety frameworks depending on the geographical destination. High-caliber China racking manufacturers engineer components backed by rigorous Finite Element Analysis (FEA) and destructive load testing to meet global standards:
- AS4084:2012 (Australian Standard): Mandates strict guidelines for steel storage racking design, frame buckling resistance, seismic safety margins, and baseplate anchoring parameters.
- EN 15512 & FEM 10.2.02 (European Norms): Specifies limit state design principles for adjustable pallet racking, testing member stiffness, beam-to-upright connector moment capacities, and lateral frame stability.
- RMI (Rack Manufacturers Institute - USA): Focuses on structural integrity, cold-formed steel section properties, floor slab mechanical anchor shear forces, and forklift impact mitigation design.
Optimized Beam Profiles
Roll-formed interlocking step beams and continuous box beams with 3 or 4-hook connector claws for maximum dynamic moment resistance.
Surface Passivation & Coating
Automatic 7-stage chemical pre-treatment followed by thermosetting epoxy-polyester powder coating cured at 200°C for exceptional abrasion protection.
Traceable Mill Certificates
Raw steel coils delivered directly from premier steel mills (such as Baosteel or Shougang) equipped with original chemical and mechanical test certificates.
2. Comparative System Matrix: Selecting the Right Density Strategy
Engineers and procurement directors must evaluate layout density against SKU accessibility. The table below outlines structural capabilities and ideal use cases across core warehouse racking topologies:
| Racking Architecture | Pallet Selectivity | Cube Utilization | Inventory Handling Protocol | Primary Industry Application |
|---|---|---|---|---|
| Selective Pallet Racking | 100% Direct Access | Standard (40% - 50%) | FIFO / LIFO Flexible | FMCG, General Warehousing, 3PL Logistics |
| Double Deep Racking | 50% Immediate Access | High (60% - 65%) | LIFO (Last-In, First-Out) | Dry Goods, Cold Storage, Bulk Manufacturing |
| Drive-In / Drive-Thru | Low (Lane Dependent) | Very High (75% - 85%) | LIFO (Drive-In) / FIFO (Drive-Thru) | Cold Chain, Food & Beverage Processing |
| Radio Shuttle Automation | High Automated Control | Maximum (85%+) | Software Switchable (FIFO/LIFO) | Automated High-Bay Distribution, Pharmaceutical |
| VNA (Very Narrow Aisle) | 100% Direct Access | High Vertical (70%+) | FIFO Strict Rotation | E-Commerce Fulfillment, High-Bay Archives |
| Steel Mezzanine Platforms | 100% Floor Expansion | Multi-Level Space Doubling | Manual Picking / Modular Decking | Automotive Parts, Supermarket Backrooms |
Industry Insights
Future Procurement & Product Development Trends in Storage Systems
The global warehousing landscape is experiencing a paradigm shift driven by e-commerce expansion, labor costs, and land supply constraints. Sourcing heavy-duty storage equipment from leading Chinese manufacturers is evolving toward smart integration, sustainability, and ultra-high-density footprints.
Trend A: Seamless AGV/AMR Autonomous Hardware Integration
Traditional racking structures rely solely on human-operated forklifts. Next-generation procurement specs demand racking tolerance standard deviations under ±1.5mm across total vertical height. AGVs and Autonomous Mobile Robots require precise floor guide channels, laser-reflective baseplate targets, and recessed bottom beam profiles to enable seamless robotic pallet deposition without physical collision.
Trend B: Specialized Cold-Chain & Harsh Environment Galvanization
With global cold-chain logistics rapidly expanding, standard powder coatings can experience micro-cracking and rust creep under extreme sub-zero condensation cycles (-30°C). Top suppliers are adopting Pre-Galvanized Coil forming and Hot-Dip Galvanizing (HDG) protocols. HDG finishes provide self-healing zinc sacrificial protection, ensuring a 25-year structural lifespan inside deep-freeze facilities.
Trend C: Modular Structural Mezzanines & Rack-Supported Buildings
To avoid lengthy municipal building permit cycles for greenfield warehouse construction, enterprises are increasingly investing in rack-supported buildings and multi-tier structural steel mezzanines. By utilizing upright structural columns to directly carry roof trusses and floor decks, businesses achieve accelerated depreciation schedules and double their operational floor space within months.
Why Partner With Us
Factory-Direct Manufacturing Excellence Since 2004
Random Racks Storage Equipment Co., Ltd. (OTS Racking) operates state-of-the-art cold-roll forming, automated robotic welding, and powder coating lines in Nanjing, China.
20+ Years Production Scale
Founded in 2004 with over two decades of export experience delivering warehouse racking systems across 60+ countries and regions worldwide.
Custom OEM/ODM Engineering
Full customization of pitch dimensions (50mm, 75mm, 76.2mm), steel column profile gauges, special paint colors, and localized branding.
Free 3D / CAD Layout Service
Send us your floor plan and forklift specifications. Our structural engineers generate CAD elevation drawings and load calculations within 24 hours.
Procurement FAQ
Frequently Asked Questions by Overseas Buyers
Detailed technical answers from our engineering team regarding design standards, load ratings, shipping, and installation.
Can your factory design a customized racking layout from our warehouse building drawings?
Yes. Simply provide your floor plan (CAD or PDF), clear ceiling height, building column grid spacing, pallet dimensions (W x D x H), gross load weight per pallet, and forklift model (turning radius & maximum reach height). Our engineering department will calculate upright section requirements, beam safety margins, and provide a full 3D/CAD drawing package complete with Bill of Materials (BOM) free of charge.
Which structural and safety standards do your pallet racking systems comply with?
Our storage systems are engineered in strict compliance with international design codes according to customer regional requirements. Longspan shelving is built to AS4084 guidelines, while pallet racking structures can be certified under European EN 15512 / FEM 10.2.02, American RMI MH16.1 standards, and CE quality standards. Independent third-party destructive load test reports (SGS, TUV) are available upon request.
How do I choose between Selective, Drive-In, Push Back, and Pallet Flow Racking?
Selection depends on your inventory rotation requirements and total SKU count:
- Selective Racking: Best for warehouses with hundreds of distinct SKUs requiring 100% immediate pallet access.
- Drive-In Racking: Ideal for high-volume, low-SKU bulk products (e.g., cold storage) operating on a LIFO (Last-In, First-Out) basis.
- Push Back Racking: Offers 2 to 5 pallet deep storage per aisle with faster loading speed than drive-in using nested carts.
- Gravity / Pallet Flow: Ideal for food, beverage, and pharmaceuticals requiring strict FIFO (First-In, First-Out) inventory control.
What steel grade is used and how is load capacity guaranteed?
We source certified Q235B and Q355B high-tensile cold-rolled steel directly from major Chinese state-owned steel mills. Load calculations are verified using ANSYS FEA structural simulation software. Every beam level features safety drop-pins to prevent accidental beam displacement during forklift operation, and safety factors (typically 1.65 to 1.9) are incorporated into nominal load ratings.
What is the average production lead time and sea freight container packing protocol?
Standard manufacturing lead time is 15 to 25 days following drawing approval and deposit receipt. Upright frames and beams are tightly bundled with steel strapping, protective plastic wrap, and timber dunnage to prevent transit scratches. Small accessories and baseplates are packed into heavy-duty corrugated export cartons or steel-banded wooden crates to maximize 40ft High Cube container cube utilization.
Do you offer on-site installation guidance or overseas assembly support?
Yes. Every order includes detailed 2D/3D assembly drawings, column anchoring diagrams, torque specifications, and installation video manuals. For large-scale logistics centers or multi-tier mezzanine projects, we can dispatch experienced installation engineers to supervise local installation crews on-site.
