Structural Analysis & Sourcing Standards for Longspan Shelving
An authoritative technical evaluation of cold-rolled steel profiles, mechanical structural safety, and load distribution dynamics for high-density manual handling environments.
In modern industrial logistics, distribution hubs, and automated fulfillment centers, Longspan Shelving Racks represent the critical intermediate bridge between heavy-duty selective pallet racking and lightweight manual storage. Specifying the correct longspan shelving manufacturer requires a deep technical understanding of structural integrity, beam deflection physics under Uniformly Distributed Loads (UDL), cold-formed steel metallurgical qualities, and international compliance benchmarks such as AS4084-2023 (Australian Standard for Steel Storage Racking), EN 15512 (European Structural Standard), and FEM 10.2.02 guidelines.
1. Technical Profile Architecture & Cold-Formed Steel Dynamics
Industrial longspan shelving utilizes cold-rolled high-tensile steel structural profiles (typically Q235B or Q355B grade steel with minimum yield strengths ranging from 235 MPa to 355 MPa). Unlike standard retail boltless shelves, heavy-duty longspan systems incorporate specialized structural components engineered for maximum moment resistance and flexural rigidity:
Roll-Formed Upright Profiles
Uprights are continuous cold-rolled steel profiles engineered with omega (Ω) or teardrop punch patterns. The multi-bend cross-sectional profile increases the radius of gyration, preventing torsional buckling under concentric and eccentric vertical loadings up to 4,500 kg per frame assembly.
Step Beams & Box Beams
Longspan horizontal beams are fabricated using twin C-profiles interlocked or step-profile beams specifically tailored to retain steel decking, wire mesh panels, or wood particle boards seamlessly. Beam connection connectors feature 3 to 4 safety teeth that lock securely into upright slots, eliminating horizontal rotational play.
Deflection standards govern the performance of longspan beams. Under full rated Uniformly Distributed Load (UDL), the maximum allowable beam deflection is capped at L/200 (where L is the clear beam span length) under European standards, and L/300 for strict high-precision picking installations. Adherence to these deflection limits prevents permanent structural deformation and guarantees smooth hand-loading operations.
Comparative Technical Specifications: Longspan vs. Alternative Systems
Comprehensive comparative analysis of structural capacity, picking efficiency, and footprint utilization across industrial storage configurations.
| Storage System Type | Load Capacity (per Level) | Standard Beam Spans | Decking Options | Access & Handling | Compliance Standard |
|---|---|---|---|---|---|
| Heavy-Duty Longspan Shelving | 300 kg - 1,200 kg UDL | 1,200 mm – 2,700 mm | Steel Panels, Wire Mesh, MDF Board | 100% Direct Manual Picking | AS4084 / EN 15512 / FEM 10.2.02 |
| Medium-Duty Rivet Shelving | 150 kg - 400 kg UDL | 900 mm – 1,800 mm | MDF Board, Particle Board | Manual Hand Load | ISO 9001 Factory Quality |
| Selective Pallet Racking | 1,000 kg - 4,000 kg | 1,800 mm – 3,900 mm | Pallet Supports, Mesh Decking | Forklift / Reach Truck Handling | RMI / ANSI MH16.1 / EN 15512 |
| Carton Flow Racking (FIFO) | 50 kg - 200 kg / Roller Track | 1,200 mm – 2,500 mm | Gravity Roller Tracks, Plastic Rollers | First-In, First-Out Assembly | Industrial Logistics Ergonomic Standard |
| Multi-Tier Mezzanine Platform | 300 kg - 1,000 kg / sq.m | Custom Floor Grid (3m - 6m) | Steel Grating, Solid Checkered Plate | Staircases, Forklift Gate, Conveyors | Building Structural Steel Codes / AS4084 |
Random Racks: Two Decades of Racking Manufacturing Excellence
Operating out of our specialized manufacturing complex in Nanjing, China since 2004, Random Racks Storage Equipment Co., Ltd. delivers certified, factory-direct storage engineering to global buyers.
In-House Roll Forming & Coating
We control the complete manufacturing vertical—from continuous cold-roll steel forming lines to high-efficiency automated electrostatic powder coating plants.
Third-Party Certified Load Ratings
Every longspan beam profile and upright frame layout undergoes rigorous destruction testing and finite element analysis (FEA), backed by formal mill test reports.
Free 3D/CAD Layout Engineering
Our structural engineering department generates full 3D CAD modeling, building column integration clearance checks, and complete Bill of Materials (BOM) before production.
AS4084 & International Compliance
Specifically engineered to meet Australian AS4084 standards as well as European FEM/EN norms, ensuring hassle-free local compliance approval and workplace safety audit pass rates.
Modular OEM / ODM Customization
Tailored shelf depths (400 mm to 1,200 mm), clear spans (up to 3,000 mm), custom RAL color epoxy finishes, and customized private brand stamping for OEM distributor partners.
Export-Grade Protective Packaging
All upright posts, beams, and shelf panels are steel-strapped with corrugated corner edge protectors, plastic stretch wrap, and timber dunnage designed for container sea freight transit.
Procurement Trends & Future Outlook for Longspan Storage Racks (2025–2030)
Key technological shifts shaping global B2B procurement decisions for high-density warehouse shelving equipment.
1. Convergence of Longspan Shelving with Autonomous Mobile Robots (AMRs)
As micro-fulfillment centers and e-commerce distribution nodes rapidly adopt Autonomous Mobile Robots (AMRs) and Goods-to-Person (GTP) picking solutions, longspan shelving systems are evolving. Modern longspan racks are increasingly engineered with flush-bottom steel decking, guide-rail integrations, and standardized bay dimensions that allow AMRs to retrieve totes and cartons directly from lower shelf levels while human pickers operate on upper mezzanine levels.
2. Shift Toward Pre-Galvanized and High-Durability Epoxy Powder Coatings
Environmental resistance is a critical benchmark for modern procurement managers. Traditional solvent-based painted racks have been largely phased out in favor of eco-friendly electrostatic epoxy powder coatings applied at 60-80 microns thickness. Furthermore, for cold storage facilities, outdoor covered storage, and humid environments, pre-galvanized structural steel profiles (Sendzimir process) are witnessing a massive surge in demand due to superior corrosion resistance without requiring expensive hot-dip galvanizing post-fabrication.

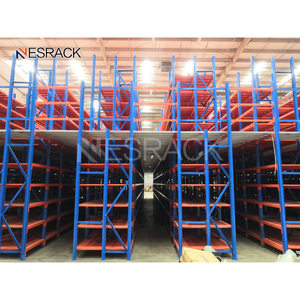

3. Hybrid Rack-Supported Mezzanine Architecture
With industrial real estate costs escalating globally, forward-thinking enterprise buyers are moving away from single-tier static shelving. Instead, procurement strategies favor upright-supported longspan mezzanines. By utilizing heavy-duty longspan frames as vertical structural columns supporting upper walkway floors, facilities double or triple their usable footprint at less than 40% of the cost of structural steel platform construction.
4. Strict Traceability & Environmental Product Declarations (EPD)
Global buyer compliance mandates (especially in Europe, Australia, and North America) now demand full material traceability. Leading manufacturers like Random Racks provide certified Mill Test Certificates (MTC) matching steel batch heat numbers to EN 10204 3.1 standards, verifying chemical composition (Carbon, Manganese, Silicon) and mechanical strength (Yield, Tensile, Elongation).
Frequently Asked Questions (FAQ) for Longspan Shelving Procurement
Clear, engineer-backed answers to essential questions asked by warehouse facility managers and B2B procurement officers.
What information is required to receive an engineered longspan layout and quota?
To prepare an accurate CAD layout and structural quotation, our engineering team requires: (1) Warehouse floor plan dimensions with clear height under sprinklers/trusses; (2) Unit load parameters including maximum weight per carton/shelf level; (3) Hand-picking height vs. forklift accessibility; (4) Preferred decking material (Steel panels, Wire mesh, or Wood board); and (5) Destination country seismic or compliance codes (e.g., AS4084, FEM, RMI).
How do I determine whether to choose Steel Decking, Wire Mesh, or MDF Board?
Steel Panels: Ideal for high load capacity, heavy industrial parts, cleanroom hygiene, and maximum durability. Wire Mesh Decking: Excellent for fire safety regulations (allows overhead sprinkler water penetration), improves ventilation and lighting in deep bays. MDF / Particle Board: Most cost-effective solution for light-to-medium hand-loaded dry goods and general order fulfillment.
What is the structural difference between Longspan Shelving and Heavy-Duty Pallet Racking?
Longspan shelving is designed primarily for manual hand-loading of unpalletized boxes, cartons, and loose components, typically featuring shelf capacities between 300 kg and 1,200 kg per level. Selective pallet racking is engineered for forklift-handled unit loads on standard wooden or steel pallets, carrying loads from 1,000 kg up to 4,000 kg per beam level.
Are floor anchor bolts necessary for longspan shelving installations?
Yes. To guarantee structural safety under accidental impact or seismic events, upright baseplates must be anchored to the concrete slab using heavy-duty expansion or sleeve anchors. Standard engineering guidelines dictate floor anchoring for all longspan frames exceeding a height-to-depth ratio of 5:1.
What are the standard factory production lead times for containerized orders?
For standard project specifications (standard RAL 5015 blue / RAL 2004 orange / RAL 7035 gray), production lead time is typically 15 to 20 days following formal CAD layout approval. Customized profiles, non-standard powder coat matching, or high-volume projects ship within 25 to 30 days.
Does Random Racks provide OEM/ODM private labeling for storage equipment distributors?
Yes. As an established rack manufacturer since 2004, we support global distributors with OEM custom hole-punching profiles, customized packaging, branded carton labeling, and direct-to-site container drop shipping.
