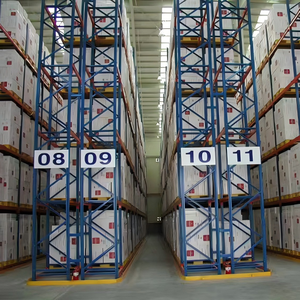

Multi Layers Heavy Duty Anti-Rust Very Narrow Aisle Storage Rack High Bearing Steel Narrow Lane Pallet Racking for Factory Stock
URGO Very Narrow Aisle Pallet Rack / VNA Racking System
Narrow Aisle VNA Pallet Racking System Adjustable Heavy Duty Cold Rolled Steel Powder Coated High-Density Logistics E-commerce

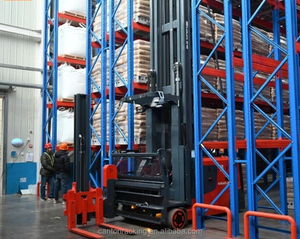

Very Narrow Aisle Racking Is Similar to Standard Rackingsystem Design, but the Aisles Are Minimized to Maximize Storage Capacity
Narrow Aisle Pallet Rack High Density Storage System with Adjustable Beams for Warehouse and Distribution Center
Heavy Duty 5 Steel Warehouse Rack Anti-rust Multi-functional Space-saving Narrow Aisle Racking Ensamblados Sin Tornillos
Reach Truck Aisle Steel Warehouse Building Narrow Racking High Capacity Galvanized Steel Frame System
Optimizing Warehouse Density in Ethiopia's Evolving Supply Chain
An Executive Guide for Logistics Operators in Addis Ababa, Modjo Dry Port, and Regional Industrial Parks
As Ethiopia consolidates its position as East Africa's manufacturing and logistical powerhouse—driven by the expansion of the Modjo Dry Port, the Djibouti-Addis Ababa transport corridor, and key industrial parks like Hawassa, Kilinto, and Bole Lemi—warehouse operational economics have shifted dramatically. Commercial land acquisition costs in peripheral Addis Ababa and key industrial belts have surged, forcing enterprise supply chain managers to rethink traditional horizontal storage layouts.
Standard selective pallet racking systems require aisle widths ranging between 3.5 to 4.2 meters to accommodate conventional counterbalanced forklifts. In contrast, Very Narrow Aisle (VNA) racking systems compress aisle clearances down to 1.5 to 1.8 meters. By partnering directly with China's leading OEM/ODM racking manufacturers, Ethiopian operators achieve up to a 44% gain in usable floor footprint while extending vertical bays up to 16 meters in height. Crucially, unlike high-density drive-in racking, VNA storage maintains 100% individual pallet selectivity, making it the premier choice for fast-moving consumer goods (FMCG), pharmaceuticals, and agricultural export operations.
Volumetric Cube Maximization
Utilizes unused vertical height up to 16 meters. By converting dead aisle space into revenue-generating pallet positions, Ethiopian facilities dramatically lower overhead cost per pallet stored.
Guided Precision Trucking
Integrates with wire-guided or mechanical angle-rail VNA turret trucks. Steers equipment safely inside ultra-narrow corridors, eliminating rack impact damage and speeding up material handling.
High-Tensile Cold Rolled Steel
Engineered from Q235B and Q355B high-grade structural steel coils. Features epoxy-polyester powder coating engineered to withstand humid Ethiopian micro-climates and dust accumulation.
VNA Racking Implementation Across Ethiopian Sectors
Tailored structural configurations built for the specific logistical demands of East Africa.
1. Coffee & Agro-Export Warehouses (Addis Ababa & Oromia)
Ethiopia's primary export revenue stems from green coffee beans, oilseeds, and pulses. Agro-logistics centers require high-density storage that strictly enforces batch tracing. China-supplied VNA racking allows exporters to stack heavy 50kg bag pallets up to 10 levels high, using heavy-duty step beams rated up to 3,000kg per level. Direct 100% pallet access ensures instant retrieval for phytosanitary testing and export container loading.
2. Kilinto Pharmaceutical Industrial Park
Medical supplies and pharmaceutical manufacturing require zero dust entrapment, smooth clean-room powder finishes, and tight inventory control. China top factories provide customized anti-microbial epoxy finishes and wire mesh decking for VNA structures. Narrow aisle configurations allow pharmaceutical facilities to maximize climate-controlled square footage, dramatically cutting refrigeration energy overheads.
3. Modjo Dry Port & FMCG Distribution (Bole Lemi Axis)
With thousands of TEUs moving through Modjo daily, fast-moving consumer goods (FMCG) logistics hubs need rapid throughput. Combining VNA pallet racking with semi-automated turret trucks yields picking speeds 30% higher than conventional selective systems. Heavy-duty column protectors and ground guide rails shield frames from structural damage during high-frequency shift operations.
4. Cold Chain & Refrigerated Storage (Dukem & Bishoftu)
Refrigerated warehouse space is up to 3x more expensive to operate than ambient space. Implementing VNA racking inside Ethiopian cold storage rooms maximizes cold-air circulation pathways around stored pallets while doubling total storage capacity per cubic meter, ensuring maximum thermal efficiency and lower power consumption.
Comparative Technical Performance Matrix
Evaluating warehouse storage systems under Ethiopian operational and civil engineering conditions.
| Storage System Type | Aisle Width Required | Floor Footprint Utilization | Pallet Selectivity | Max Stacking Height | Ethiopian Market Suitability |
|---|---|---|---|---|---|
| Standard Selective Racking | 3.5m - 4.2m | 40% - 45% | 100% Direct Access | Up to 11 Meters | Low-density regional depots |
| Very Narrow Aisle (VNA) | 1.5m - 1.8m | 75% - 85% Max Density | 100% Direct Access | Up to 16 Meters | Addis Ababa, Modjo, Industrial Parks |
| Drive-In Racking | 3.0m - 3.5m | 65% - 75% High Density | Low (FILO Only) | Up to 10 Meters | Bulk single-SKU raw materials |
| Radio Shuttle Racking | 3.0m - 3.2m | 80% - 90% Ultra Density | Medium (LIFO/FIFO) | Up to 14 Meters | High-capital automated cold chain |
Frequently Asked Questions for Ethiopian Importers
Essential answers regarding international freight, customs clearance, installation, and engineering standards.
How are racking shipments routed from Chinese factories to Ethiopia?
Shipments depart from major Chinese ports such as Ningbo, Shanghai, or Qingdao, arriving at the Port of Djibouti. From Djibouti, cargo is transported via the Addis Ababa-Djibouti Railway or heavy drayage trucks to inland container depots including Modjo Dry Port, Comet, or directly to your project site in Ethiopia. Chinese manufacturers package components in seaworthy steel-banded bundles with plastic film wrapping to prevent saltwater corrosion during transit.
What concrete floor specifications are required for VNA racking?
Because VNA turret trucks lift pallets up to 16 meters in narrow aisles, floor levelness is critical to prevent truck sway. Floors should conform to TR34 FM2 or Superflat (DIN 15185) standards. Concrete slabs generally require a minimum compressive strength of C30/37 with a thickness of 200mm to 250mm, reinforced to withstand heavy point loading from frame baseplates.
Can Chinese racking suppliers provide engineer layout approval for Ethiopian customs & permits?
Yes. Leading Chinese manufacturers deliver comprehensive 2D CAD floor plans, 3D structural layouts, and structural engineering calculation sheets compliant with EN 15512 or FEM 10.2.02. These documents satisfy Ethiopian Ministry of Innovation and Technology regulations and local industrial park construction permits.
What is the difference between Mechanical Guide Rail and Wire Guidance in VNA systems?
Mechanical Guide Rails utilize steel angle profiles anchored directly to the concrete floor along both sides of the aisle. The VNA truck's guide rollers run along these rails. Wire Guidance embeds an inductive wire inside a shallow floor cut down the center of the aisle, sending radio frequencies to steer the truck electronically. Mechanical rails are easier to install in standard Ethiopian warehouses, whereas wire guidance eliminates floor obstacles.
How do Ethiopian buyers manage L/C payments and customs tariff codes?
Racking equipment is imported under HS Code 7308.9000 (Structures and parts of structures of iron or steel). Direct factory suppliers accept Letters of Credit (L/C at sight) issued by major Ethiopian banks (such as Commercial Bank of Ethiopia or Awash Bank) or TT transfers via foreign currency allocation accounts.
Do Chinese manufacturers provide on-site installation support in Addis Ababa?
Yes. Manufacturers offer detailed 3D step-by-step installation manuals, video guides, and live video support. For large-scale projects in industrial parks, senior installation engineers can be deployed on-site to direct local Ethiopian assembly crews, ensuring plumb upright alignment within sub-millimeter tolerances.
Why Partner With China's Top Racking Manufacturers
Two decades of engineering excellence, automated production lines, and global export compliance.
20+ Years Direct Manufacturing
Operating continuous roll-forming lines, automated robotic welding cells, and electrostatic powder coating chambers since 2004.
Certified Structural Compliance
Every system engineered with reference to European EN 15512, FEM 10.2.02, American RMI, and Australian AS4084 structural codes.
Free 24-Hour CAD/3D Layouts
Send your warehouse drawings and pallet specs to receive engineered layout options and structural load calculations free of charge.
Mill-Certified Raw Materials
Exclusively forged from prime Q235B and Q355B structural steel coils supplied by China's top tier steel manufacturing mills.
Third-Party Load Tested
Destructive and non-destructive load testing reports certified by independent global testing bodies like SGS and TÜV.
Complete OEM / ODM Flexibility
Custom beam profiles, customized powder coat colors, galvanized anti-corrosion options, and tailored pitch adjustments.
Transform Your Warehouse Density in Ethiopia Today
Consult with our senior logistics engineers to calculate your exact storage capacity gains, receive custom 3D drawings, and get direct factory pricing.
